160KV Digital Radiography Unicomp X Ray For Aluminum Casting

Danh mục:

Unicomp

Từ khóa:

xray3dsửamáyxraycôngnghiệp , sửamáyxraycôngnghiệp , máykiểmtraxray , kiểmđịnhantoànphóngxạ , máyxraycôngnghiệp , chothuêmáyxray , muabánmáyxraycũmới , máyxraycũmới , xray3d , xrf , xrfcũmới , sửamáyđoxrf

Vận chuyển giao hàng toàn quốc

Phương thức thanh toán linh hoạt

Gọi ngay 0974692294 để mua và đặt hàng nhanh chóng

Mô tả sản phẩm

Place of Origin:	China
Brand Name:	UNICOMP
Certification:	CE
Model Number:	UNC160

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	can negotiate
Packaging Details:	Wooden Case, Waterproof, Anti-collision
Delivery Time:	30 days
Payment Terms:	T/T, L/C
Supply Ability:	10 sets per month

Detailed Product Description

Name:	X-ray Inspection Machine	Application:	Aluminum Casting, Iron Casting, Auto Parts, Wheels, Metal Products, Refractory Materials
Tube Voltage:	160KV	Industry:	Industry Nondestructive Testing
Size:	2100(L)x1720(W)x2470(H)mm	X-ray Leakage:	< 1uSv/h
Weight:	3.5T	Power Consumption:	6kW
High Light:	Digital Radiography Unicomp X Ray Aluminum Casting Unicomp X Ray 160KV Benchtop X Ray Machine

Wheel Hub / Rim Casting Parts Quality Control By Unicomp High Penertration UNC160 X-Ray System

Features:

● Strong penetration,high reliable,low breakdown, long life;
● High definition,resolution FPD;
● Multi-functional workstation,360°rotation and shift;
● High automation,fast detection speed;
● User friendly software design for interfacing and to facilitate,customize software function development requirement.

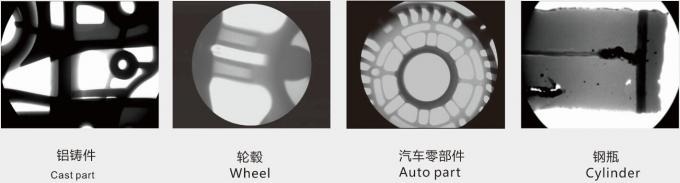

Applications:

● Cast parts and pressure Vessels

● Steel pipe,Cylinder and Wood

● Epoxy Resin Defect Detection
● Wheel,Tires and Metal parts

System Parameters	Dimensions	2100mm1549mm2468mm(LWH)
	Equipment weight	3.5T
	Power	6KW
	Maximum penetration(AL/FE)	100mm/20mm
	Detection range	Φ500*800mm
	Load weight	50kg
	Work environment	5-40° ≤80%HR
	Install power	Three-phase five wire system AC380V
	X-ray leakage dose rate	≤1uSv/h
X-ray Generator	Tube voltage	160kV
	Power	480W
	Focal size	0.5mm
Detector	Image area	145mm x 145mm
Detector	Resolution	3.0LP/mm
Detector ( Selection FPD )	Image area	17’’x17’’
	Pixel matrix	3072mm*3072mm
	Pixel size	139μm
	Frame rate	9fps(1x1)30fps(2x2)
Software Functions	Image processing	Brightness and contrast adjustment; stacking frames; window width and level adjustment; image enhancement, filtering, sharpening, invert, relief and bubble measure; move, zoom in, zoom out; display image scaling; display the current mouse pointer image coordinate and the gray value
	Image measurement	Distance, radius, polygon, angle measurement; arrows and text labels; save the processed image;
	Motion control	Speed adjustment of each moving axis; CNC programming; manual operation
Additional Function	Save the detection time of the bulk of the work piece via the CNC programmable control
	No dead angle detection with C-arm five-axis motion detection mechanism
	Servo stepper motor drive to make the operation stability
	Voltage regulator, isolation, filtering, grounding and other protective functions are complete
	Set aside industrial cloud interface, data and pictures in real time upload, with traceability and large data analysis function (optional)
