Mô tả sản phẩm
Place of Origin: | China |
---|---|
Brand Name: | UNICOMP |
Certification: | CE, FDA |
Model Number: | CX3000 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1Set |
---|---|
Price: | can negotiate |
Packaging Details: | Wooden Case, Waterproof, Anti-collision |
Delivery Time: | 30 days |
Payment Terms: | T/T, L/C |
Supply Ability: | 30 sets per month |
Detailed Product Description
Name: | Benchtop X Ray Machine | Application: | SMT, EMS,BGA, Electronics, CSP , LED , Flip Chip , Semiconductor |
---|---|---|---|
Tube Voltage: | 100KV | Max.Loading Size: | 200mm X 200mm |
Oblique Angle Views: | 360° Rotary Fixture (Optional) | X-ray Leakage: | <1μSv/h |
High Light: |
x ray detection systemsx ray detectorBenchtop X Ray Machine |
Desktop X-ray Benchtop X Ray Machine for Electronic and electrical components
Benefits
Flexibility combined in one system
Interactive visualization
Fully automatic X-ray inspection
Low-cost maintenance with open-tube technology
Safe system requiring no special precautions or badges
Small footprint
X-ray detection technology for the SMT production testing means brought new changes, it can be said that it is the desire to further improve the level of production technology to improve the quality of production, and will soon find the circuit assembly failure as a breakthrough. It's the best selection for the manufacturer.
Installation
Unicomp will provide installation and calibration service at the customers location Installation includes assistance in registering your new x-ray system with local and state agencies where applicable. One (1) on-site radiation survey at the time of installation with supporting documents.
Item | Definition | Specs |
System Parameters | Size | 750(L)x570(W)x890(H)mm |
Weight | 300kg | |
Power | 220AC/50Hz | |
Power Consumption | 0.5kW | |
X-ray Tube | Type | Closed |
Max.Voltage | 100kV | |
Max.Power | 200μA | |
Spot Size | 5μm | |
Detector | Intensifier | FPD |
X-ray Coverage | 48mm x 54mm | |
Resolution | 208Lp/cm | |
Work Station | Max.Loading Size | 200mm x 200mm |
Max.Inspection Area | 200mm x 200mm | |
Oblique Angle Views | 360° rotary fixture (Optional) | |
X-ray Leakage | <1μSv/h |

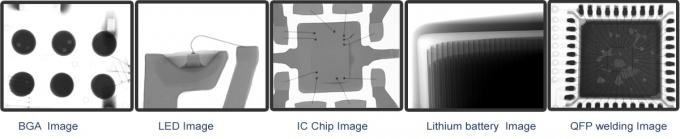

Inspection Images:
