Overview：

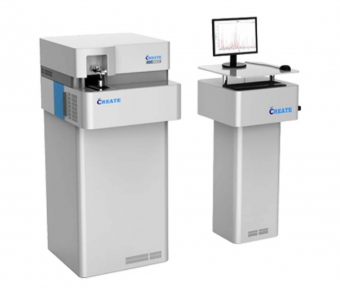

CX-9800 Floor Model Spectrometer provides the ideal performance and fit for product assurance testing and material identification. This spectrometer delivers maximum confidence and reliability based on CCD technology.
CX-9800 Floor Model Spectrometer is most suitable instruments for the determination of various elements in different matrices. In steel, raw iron, cast iron, non-ferrous metal production a fully or even partially automated analysis results in a cost reduction. In order to meet individual requirements, modular systems have been developed for laboratory automation. This also gives the user a truly spectrometer with multi-base capability (Fe, Al, Cu, Zn, Ti, Ni, Pb, etc) that’s both easy to use and space saved.
.png)
Specifications:
| Optical System | Optical Structure | Paschen-Runge mount |
| Rowland circle of diameter | 400nm | |
| Wavelength range | 130nm-800nm | |
| 200nm-800nm | ||
| Detector | High resolution CCD Multi detectors | |
| Degree of vacuum | Auto control within 6-15 pa | |
| Pixel resolution | 10pm | |
| full spectrum | ||
| Light room temperature is controlled automatically | ||
| Spark Source | Type | Digital arc and spark source/ |
| New plasma generator | ||
| Spark Frequency | 100-1000HZ | |
| Plasma current | 1-80A | |
| Ignition voltage | >7000V | |
| Spark Stand | Argon flushed with minimal consumption of Argon | |
| Spray discharge electrode technology | ||
| Adjustable sample clamp | ||
| Others | Measurable elements | Fe base, Al base, Cu base, Zn base, ect |
| Dimension | 800mm(L)*700mm(W)*470mm(H) | |
| Weight | About 100kg | |
| Storage Temperature | 0℃-45℃ | |
| Operating temperature | 10℃-30℃, 23±2℃ is recommended | |
| Power | AC220V/50Hz (Customized) | |
| Power consumption | Excitation: 700W / Stand by:100W | |
| Argon quality | 99.999%, Argon pressure >4Mpa | |
| Argon consumption | 5L/min during spark mode | |
