Overview：

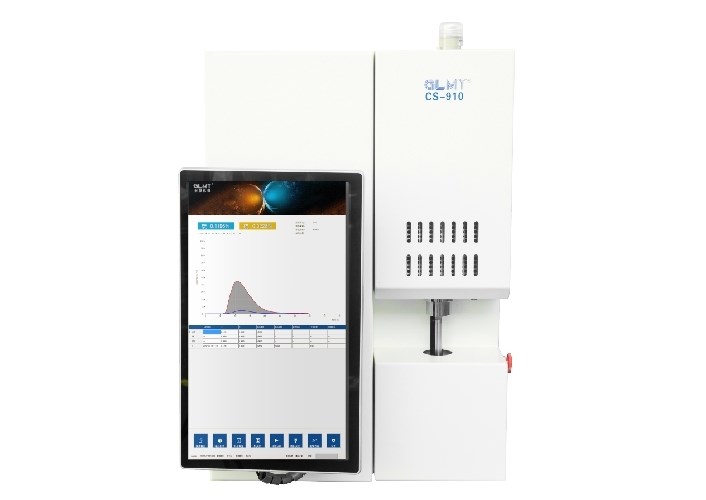

CS-910 Carbon Sulphur Analyzer with high frequency furnace and infrared detection is the ideal instrument for rapid and precise carbon and sulfur analysis in solids, especially with metallic materials but as well with other inorganic materials like ceramics, ores, cement, clays etc. The solid sample is combusted in a ceramic crucible within a sealed high-frequency furnace which is pressurized by a flow of pure oxygen. In order to achieve optimum combustion, the power of the High Frequency furnace is adjustable. The resulting reaction gases CO2 and SO2 are measured by solid-state IR detectors. The system is characterized by its high analytical speed, precision and sensitivity combined with ease of use and almost maintenance free operation.
Specifications:
|
Measured elements |
Carbon(C) 0.0001%-15.0000% Sulfur (S) 0.0001%-5.0000% |
|
Samples |
inorganic |
|
Electronic balance |
Weighing range: 0-100g (resolution 0.0001g), |
|
Furnace alignment |
Vertical |
|
Sample carrier |
ceramic crucibles |
|
Field of application |
construction materials, engineering / electronics, geology / mining, glass / ceramics, steel / metallurgy |
|
Furnace |
High frequency furnace, 3.5KVA 20MHz |
|
Detection method |
solid state infrared absorption |
|
Typical analysis time |
26 - 60 s, Average: 35 s |
|
Gas required |
Industry Oxygen 99.2 % |
|
Power requirements |
AC220 V, ±5% 50Hz±2% |
|
Dimensions (W x H x D) |
54 x 81 x 60 cm |
|
Weight |
80kg |
|
Required equipment |
Electronic balance, monitor, PC |
|
Operating temperature |
0-30 ℃ RH:<75% |
|
Optional accessories |
Printer, PC |
