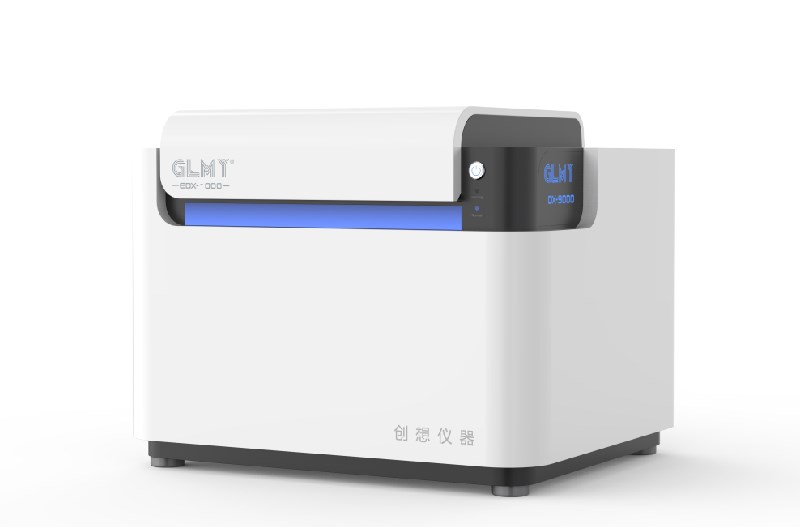

EDX-9000PRO XRF ANALYZER

Danh mục:

GLMY

Vận chuyển giao hàng toàn quốc

Phương thức thanh toán linh hoạt

Gọi ngay 0974692294 để mua và đặt hàng nhanh chóng

Mô tả sản phẩm

Overview：

X-ray fluorescence analyzer provides stable, most accurate and most economic methods for the determination. It is an ideal analyzer to control the quality of products.

It can be used for wide range of elements, from Na(11)-U（92）. The Silicon Drift Detector with multi-channel analyzer detects the X-ray fluorescence radiation and accumulates counts to form an intensity versus energy spectrum of the sample.

Specifications:

TECHNICAL PARAMETER
Analysis range	From Na(11) to U(92)
Lower limit	1ppm-100ppm
Sample shape	Soild/Power
Sample room size	φ270x100mm
X-Ray Tube Target	Optional
X-Ray Tube Voltage range	5-50kV
X-Ray Tube Current range	1-1000μA
Collimator	2,4,6,8mm
Detector	Fast SDD detector
Pre-Amp	Imported
Main amplifier	Imported
AD conversion module	Imported
Counting Ability	1300000
Filter	CPS
Sample observation	1.3 million pixels of CCD camera
Analysis software	Proprietary soft products Free lifetime upgrade
Test method	The oretical a-coefficient Method,FP and EC
Test environment	Temperature:10-35℃ Humidity:30-70%RH
Dimension and Weight	600(W)500(D)500(H)mm 60kg(Host)
Power supply requirements	AC22010%、50/60Hz
Test time	100-300s(Adjustable)
