Mô tả sản phẩm
Place of Origin: | China |
---|---|
Brand Name: | UNICOMP |
Certification: | CE |
Model Number: | UNC160 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1Set |
---|---|
Price: | can negotiate |
Packaging Details: | Wooden Case, Waterproof, Anti-collision |
Delivery Time: | 30 days |
Payment Terms: | T/T, L/C |
Supply Ability: | 10 sets per month |
Detailed Product Description
Name: | X-ray Inspection Machine | Application: | Aluminum Casting, Iron Casting, Auto Parts, Wheels, Metal Products, Refractory Materials |
---|---|---|---|
Tube Voltage: | 160KV | Industry: | Industry Nondestructive Testing |
Size: | 2100(L)x1720(W)x2470(H)mm | X-ray Leakage: | < 1uSv/h |
Weight: | 3.5T | Power Consumption: | 6kW |
High Light: |
CNC NDT X Ray Equipment160KV NDT X Ray EquipmentBGA Benchtop X Ray Equipment |
Features:
● Strong penetration,high reliable,low breakdown, long life;
● High definition,resolution FPD;
● Multi-functional workstation,360°rotation and shift;
● High automation,fast detection speed;
● User friendly software design for interfacing and to facilitate,customize software function development requirement.
System Parameters | Dimensions | 2100mm*1549mm*2468mm(L*W*H) |
Equipment weight | 3.5T | |
Power | 6KW | |
Maximum penetration(AL/FE) | 100mm/20mm | |
Detection range | Φ500*800mm | |
Load weight | 50kg | |
Work environment | 5-40° ≤80%HR | |
Install power | Three-phase five wire system AC380V | |
X-ray leakage dose rate | ≤1uSv/h | |
X-ray Generator | Tube voltage | 160kV |
Power | 480W | |
Focal size | 0.5mm | |
Detector | Image area | 145mm x 145mm |
Resolution | 3.0LP/mm | |
Detector ( Selection FPD ) | Image area | 17’’x17’’ |
Pixel matrix | 3072mm*3072mm | |
Pixel size | 139μm | |
Frame rate | 9fps(1x1)30fps(2x2) | |
Software Functions | Image processing | Brightness and contrast adjustment; stacking frames; window width and level adjustment; image enhancement, filtering, sharpening, invert, relief and bubble measure; move, zoom in, zoom out; display image scaling; display the current mouse pointer image coordinate and the gray value |
Image measurement | Distance, radius, polygon, angle measurement; arrows and text labels; save the processed image; | |
Motion control | Speed adjustment of each moving axis; CNC programming; manual operation | |
Additional Function | Save the detection time of the bulk of the work piece via the CNC programmable control | |
No dead angle detection with C-arm five-axis motion detection mechanism | ||
Servo stepper motor drive to make the operation stability | ||
Voltage regulator, isolation, filtering, grounding and other protective functions are complete | ||
Set aside industrial cloud interface, data and pictures in real time upload, with traceability and large data analysis function (optional) |
Applications:
● Cast parts and pressure Vessels
● Steel pipe,Cylinder and Wood
● Epoxy Resin Defect Detection
● Wheel,Tires and Metal parts

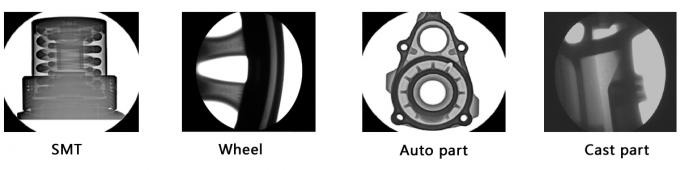

Inspection Images:
