Mô tả sản phẩm

Place of Origin:	China
Brand Name:	Unicomp
Certification:	CE, FCC, FAD
Model Number:	LX2000

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	On request
Packaging Details:	Wooden Case, Waterproof, Anti-collision
Delivery Time:	60 days after order confirmation
Payment Terms:	T/T, Western Union, L/C

Detailed Product Description

X-Ray Voltage:	130kV	Detector:	FPD
Focal Spot:	3μm	Control Mode:	CNC
High Light:	Online ADR X Ray Inspection Equipment LED Strip X Ray Inspection Equipment 130kv Electronic Inspection Equipment

X-Ray Voltage:

130kV

Detector:

FPD

Focal Spot:

3μm

Control Mode:

CNC

High Light:

Online ADR X Ray Inspection Equipment

LED Strip X Ray Inspection Equipment

130kv Electronic Inspection Equipment

Unicomp High Speed inline SMT PCBA X-Ray Inspection System with Automotive Identification OK / NG Result

Specifications

Item	Definition	Specs
System Parameters	Size	1385(L)x1400(W)x1620(H)mm
	Weight	2000kg
	Power	220AC/50Hz
	Power Consumption	3.5kW
X-ray Tube	Type	Closed
	Max.Voltage	130kV
	Max.Power	40W
	Spot Size	3μm
X-ray System	Intensifier	FPD
	Monitor	22 ‘’LCD
	System Magnification	200 X
Detection Region	Orbit Adjusting Range	80-350mm
X-ray Leakage		<1μSv/h
Control Mode		CNC Motion Mode

Features:

The LX-2000 is a versatile OnLine X-ray Machine designed for automated and semi-automated analysis. In addition to the OnLine capability, the LX-2000 can also be used in a Manual mode as a process monitoring/engineering workstation.

High resolution x-ray images are generated using a closed microfocus 130kV tube with leading edge FPD (Flat Panel Display) detectors. This imaging chain combination is excellent for multiple applications including; PCBA, Semiconductor, Encapsulated Components, and Solar Cell just to name a few.

Applications:

BGA , CSP , Flip Chip, LED , Fuse, Diode, PCB

Semiconductor , Battery Industry , Small Metal Casting, Electronic Connector Module

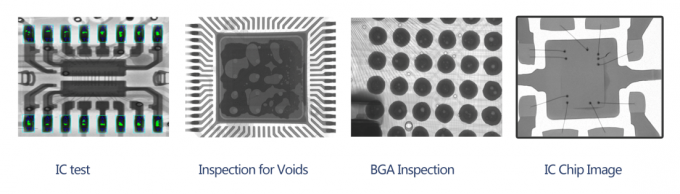

Inspection image:

X-Ray Safety: All X-ray machines manufactured by Unicomp Technology meet the FDA-CDRH Regulation CFR 21 1020.40 Subchapter J for cabinet x-ray systems. The FDA - CDRH standard for cabinet x-ray systems states that radiation emission will not exceed. 5millirem a /hr.2"from any external surface. Our machines (X-Ray Leakage <1μSv/h ) are typically 5-10 times less emission than the international standards,
