100KV Inline X Ray ADR Detection System BGA EMS For Inside Quality Inspection

Danh mục:

Unicomp

Từ khóa:

xray3dsửamáyxraycôngnghiệp , sửamáyxraycôngnghiệp , máykiểmtraxray , kiểmđịnhantoànphóngxạ , máyxraycôngnghiệp , chothuêmáyxray , muabánmáyxraycũmới , máyxraycũmới , xray3d , xrf , xrfcũmới , sửamáyđoxrf

Vận chuyển giao hàng toàn quốc

Phương thức thanh toán linh hoạt

Gọi ngay 0974692294 để mua và đặt hàng nhanh chóng

Mô tả sản phẩm

Place of Origin:	China
Brand Name:	UNICOMP
Certification:	CE, FDA
Model Number:	LX8500

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	can negotiate
Packaging Details:	Wooden Case, Waterproof, Anti-collision
Delivery Time:	30 days
Payment Terms:	T/T, L/C
Supply Ability:	300 sets per month

Detailed Product Description

Color:	Grey And Black	Name:	X-ray Inspection Machine
Application:	SMT, EMS,BGA, Electronics, CSP , LED , Flip Chip , Semiconductor	Tube Voltage:	100KV
Industry:	Electronics Industry	Size:	1250(L)x1300(W)x1900(H)mm
X-ray Leakage:	< 1uSv/h	Weight:	1500kg
High Light:	100KV Inline X Ray ADR Detection Inline X Ray BGA EMS X Ray Inspection Equipment

Electronics SMT Cabinet Unicomp X-Ray Inspection System LX8500 Failure Analysis

Features:

● Real-time image.
● 1000X system magnification.

● 100KV 5μm X-Ray tube.

● Modular design with In-line expansibility.
● Economical and Practical.

● FPD Detector.

● 6 axis linkage system.
● X-ray tube and FPD simultaneously tilt ±35°.

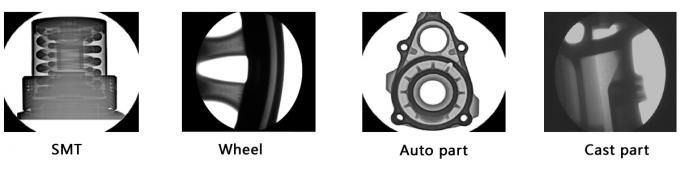

Applications:
● LED,SMT,BGA,CSP,Flip Chip Inspection.
● Semiconductor,Packaging components,Battery Industry.
● Electronic components, Auto parts, Photovoltaic Industry.
● Aluminum Die Casting, Moulding Plastic.
● Ceramics, Other Special Industries.

Item	Definition	Specs
Motion Control System	Motion Control Mode	Mouse&Joystick&Keyboard
	Max.Load Dimension	500x500mm
	Max.Detection Dimension	350x450mm
	Tilt Detection Angle	60°
X-Ray System	Tube Type	Closed
	Voltage/Current	100kv/200μA
	Focal Spot Size	5μm
	FPD Detector	FPD
Physical & Image Processing Parameters	Length x Width x Height	1250 x 1300 x 1900 mm
	Weight	1500 kg
	Power	2kW
	System Magnification	500 x
	Leakage Dose	<1μSv/h
