Mô tả sản phẩm

Place of Origin:	China
Brand Name:	Unicomp
Certification:	CE
Model Number:	AX9100

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	USD
Packaging Details:	Unicomp package
Delivery Time:	30 work days
Payment Terms:	T/T, L/C
Supply Ability:	300 pcs per month

Detailed Product Description

Name:	X-ray Inspection Machine	Application:	SMT, EMS, BGA, Electronics, CSP , LED , Flip Chip , Semiconductor
Tube Voltage:	130KV	Industry:	Electronics Industry
Size:	1350(L)x1250(W)x1700(H)mm	X-ray Leakage:	< 1uSv/h
High Light:	x ray fluorescence instrument micro xrf analyzers

Close tube 2.5D X-ray Machine AX9100 for LED soldering quality control with high resolutin images

Features:
● 90-130KV 7μm X-Ray tube.
● High speed & Millions pixels high resolution FPD.
● 1000X magnification, high-definition real-time image.

● One-button operation with 2.5D image display.
● Off-line programming function, navigation mode detection.
● 7 axis linkage, 70 degree tilt detection.

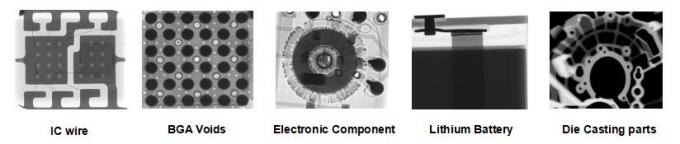

Applications:
● SMT, BGA, CSP, Flip Chip, LED Detection.
● Semiconductor, Packaging components, Battery Industry.
● Electronic components, Auto parts, Photovoltaic Industry.
● Aluminum Die-casting, Moulding Plastic.
● Ceramics, Other Special Industries.

Item	Definition	Specs
System Parameters	Size	1350(L)x1250(W)x1700(H)mm
	Weight	1900kg
	Power	220AC/50Hz
	Power Consumption	1.6kW
X-ray Tube	Type	Closed
	Max.Voltage	130kV
	Max.Power	40W
	Spot Size	7μm
X-ray System	Intensifier	FPD
	Monitor	22 ‘’LCD
	System Magnification	1600 X
Detection Region	Max.Loading Size	Φ570mm
Detection Region	Max.Inspection Area	450mm x 450mm
X-ray Leakage		<1μSv/h
