SMD Cable X Ray System , Pcb Inspection Equipment AX8300 For Electronics Components

Danh mục:

Unicomp

Từ khóa:

xray 3d sửa máy x ray công nghiệp , sửa máy x ray công nghiệp , máy kiểm tra x ray , kiểm định an toàn phóng xạ , máy x ray công nghiệp , cho thuê máy x ray , mua bán máy x ray cũ mới , máy x ray cũ mới , xray 3d , x ray 3d , xrf , xrf cũ mới , sửa máy đo xrf

Vận chuyển giao hàng toàn quốc

Phương thức thanh toán linh hoạt

Gọi ngay 0974692294 để mua và đặt hàng nhanh chóng

Mô tả sản phẩm

Place of Origin:	China
Brand Name:	UNICOMP
Certification:	CE, FDA
Model Number:	AX8300

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	can negotiate
Packaging Details:	Wooden Case, Waterproof, Anti-collision
Delivery Time:	30 days
Payment Terms:	T/T, L/C
Supply Ability:	300 sets per month

Detailed Product Description

Name:	PCB X Ray Machine	Tube Voltage:	100KV/110KV
Industry:	Electronics Industry	Size:	1100(L)x1100(W)x1650(H)mm
X-ray Leakage:	< 1uSv/h	Power Consumption:	1.5KW
High Light:	pcb x ray inspection pcb inspection equipment SMD Cable X Ray System

SMD Cable Electronics Components Unicomp PCB X Ray Machine AX8300

X-ray inspection system has been widely applied to Circuit Board Inspection,Semi-Conductor Inspection and Other Applications. (Offline X - Ray series) widely used in offline detection, defect analysis, used for PCBA, packaging, ceramics, plastics, LED, and so on.

Features:
110kV Microfocus x-ray source,
High resolution FPD
X/Y/Z/Tilt Motions (table, tube, FPD)
360° Table Rotation
Angle View up to 70 Degrees
Point and Click Location Navigation
CNC Programming for Multiple Image Inspection Routines
Max Inspection Area 360 x 340mm

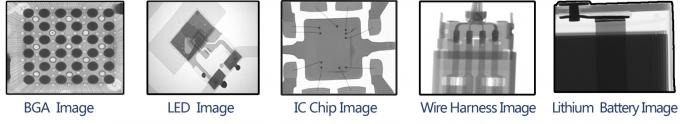

Applications
BGA Inspection
Inspection of over molded electrical connectors
Encapsulated components
Aluminum die castings
Molded plastic components
Ceramics
Aerospace components
Electrical / mechanical components
Electronic components
SMT assemblies
Pharmaceuticals
Automotive assemblies
Agriculture
Counterfeit inspection
Cell phone battery inspection

Model	AX8300
Max kV/type	110 kV(Option90 kV)/Sealed
Max.Electron beam power	25W(Option8W)
Focal spot size¹	7μm
System magnification	Up to 1000X
Imaging system(Option)	Flat Panel Detector
Manipulator	8-axis with tilt 50 degree
Measuring volume	Max load area 300x300mm²
Max.sample weight	5kg
Monitors	22" LCD
Cabinet dimensions	1100x1100x1650mm
Weight	1700kg
Radiation safety²	<1μSv/hr(<0.1mR/hr)at the cabinet surface 5cm
Control	Keyboard/Mouse/Joystick
Automated inspection	Standard
Primary applications	Chip inspection/Electronic components/Auto parts.etc
1.Focal spot size is a variable.Please consult the unicomp 2.X-ray Safety Commitment:All x-ray machines manufactured by Unicomp Technology meet the FDA-CDRH Regulation CFR 21 1020.40 Subchapter J for cabinet x-ray systems.The FDA-CDRH standard for cabinet x-ray systems states that radiation emissions will not exceed.5millirem/hr.2"from any external surface.Our machines are typically 15times less emission.
