110kv 4KW Lithium Battery X Ray Machine Unicomp For Cylindrical 18650

Danh mục:

Unicomp

Từ khóa:

xray 3d sửa máy x ray công nghiệp , sửa máy x ray công nghiệp , máy kiểm tra x ray , kiểm định an toàn phóng xạ , máy x ray công nghiệp , cho thuê máy x ray , mua bán máy x ray cũ mới , máy x ray cũ mới , xray 3d , x ray 3d , xrf , xrf cũ mới , sửa máy đo xrf

Vận chuyển giao hàng toàn quốc

Phương thức thanh toán linh hoạt

Gọi ngay 0974692294 để mua và đặt hàng nhanh chóng

Mô tả sản phẩm

Place of Origin:	China
Brand Name:	Unicomp
Certification:	ISO9001，ISO14004,OHSAS18001,
Model Number:	LX-1Y60-110

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	Can negotiate
Packaging Details:	Wooden Case
Delivery Time:	One month
Payment Terms:	T/T
Supply Ability:	100Sets/Month

Detailed Product Description

Dimension（L×W×H）:	3300mmX1500mmX2000mm	Weight:	2.5t
Power:	4KW	Max.Voltage:	110kv
Resolution:	110 Lp/cm	Focal Spot Size:	5um
High Light:	4KW Lithium Battery X Ray Machine 110kv Lithium Battery X Ray Machine Cylindrical 18650 X Ray Scanner

Inline Automatic X Ray Inspection Machine for 18650 Battery LX-1Y60-110

Aftersales service:

Ø A professional service team
Ø Country-wide network
Ø 24/7 hotline
Ø Onsite installation, debugging and training services
Ø Scheduled call & visits
Ø Life-long free software upgrading

Prodcution Capacity

Ø Wuxi Factory: 6000M2
Ø Shenzhen Factory: 9000M2
Ø Chongqing Factory:8500M2
Ø Current Capacity: 300 Sets /Month
Ø Expansion Capacity: 1000 Sets/Month

System Parameters	Dimension(L×W×H)	3300mmX1500mmX2000mm
	Weight	2.5t
	Working Environment	0～40℃
	Power	4KW
	Accuracy	±60μm
	Operating Mode	In-line
X-ray Tube	Type	Closed
	Max.Voltage	110kv
	Max.Current	0.45mA
	Focal Spot Size	15um
	Quantity	1/2
Image Detector	Type	Image Intensifier
	Resolution	110 Lp/cm
	Size	4”
	Quantity	1/2
Applied to		18650 Cylindrical Battery
Max.Capacity		60ppm/130ppm
Operation Ratio		≥95%
Applicable Size		18650 Cylindrical Battery
Items		Alignment Metric
Customer Cases		Panasonic /DLG/Liaoning BICO

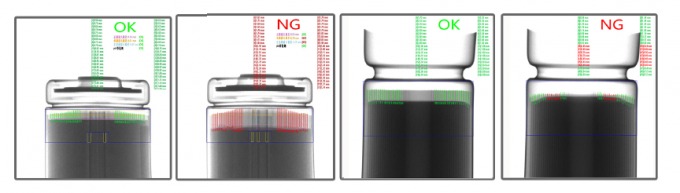

Equipment Features		Applicable to the detection of cylindrical batteries like 18,26 series ; High speed, high stability ; Modular design with high expansibility, customized automatic battery loading and unloading Automatic docking with production lines, unattended operation; *Unicomp-owned R&D of in-line lithium battery inspection software system

Features:

1, Fully automated operations, reduce manpower, reduce production costs, improve production efficiency and quality consistency;
2, Software automatically determine, improve product consistency and quality assurance;
3, Comes with SPC software analysis, easy process control and quality data analysis;
4, The design fully consider the safety factors to ensure the safety of personal protection;
5, Beautiful appearance , generous, enhance the corporate reputation.
