Mô tả sản phẩm
| Place of Origin: | China |
|---|---|
| Brand Name: | Unicomp |
| Certification: | CE, FDA |
| Model Number: | AX7900 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | can negotiate |
| Packaging Details: | Wooden Case, Waterproof, Anti-collision |
| Delivery Time: | 15 days after order confirmation |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 300 sets per month |
Detailed Product Description
| Name: | Unicomp X-ray Inspection Machine | Application: | SMT, EMS,BGA, Electronics, CSP , LED , Flip Chip , Semiconductor |
|---|---|---|---|
| Voltage: | 0~90kV (Adjustable) | Detector: | Flat Panel Detector (FPD) |
| Pixel Size: | 85μm | Focus Spot Size: | 5μm |
| X-Ray Safety: | <1μSv/h (Meets All International Standards) | ||
| High Light: |
AX7900 Electronics X Ray MachineFDA Electronics X Ray MachineAX7900 digital x ray machine |
||
AX7900 Electronics X Ray Machine For Automotive Glass Lift Module
Using Unicomp AX7900 X-ray machine for automotive glass lift module wire harness inner broken
| System Summary | |
| Footprint | 1200(W)×1200(D)×1500(H)mm |
| Machine Weight | 1130 kg |
| Power Supply | AC 110/220V, 50/60Hz |
| Plywood Packing Size | 1350(W)×1350(D)×1800(H)mm |
| Packing Weight | 1330 kg |
| Power Consumption | 1.3 kW |
| X-Ray Tube | |
| Tube Type | Sealed |
| Max. Power | 8W |
| Voltage | 0~90kV (Adjustable) |
| Focus Spot Size | 5μm |
| Imaging System | |
| Detector | Flat Panel Detector (FPD) |
| Pixel Size | 85μm |
| Effective Detection Area | 65*65mm |
| Frame Rates | 40fps |
| Pixel Matrix | 768*768 |
| System Magnification | 600X |
| Software | |
| Auto-measuring | BGA Soldering Voids Auto-measuring and Support Data/Graphic Output |
| Multiple Measuring Tools | Support Measuring Distance, Angle, Diameter, Polygon, PTH filling rate, etc. |
| CNC Mode | CNC Programmable Inspection, Easy Operation and User Friendly |
| Real-time Display | Real-time Displaying the Working Data of Voltage, Current, Angle, Date, etc |
| Navigation | Convenient Target Point Positioning System |
| Motion Control System | |
| Movement Control | Joystick, Keypad & Mouse |
| Max. Loading Area/Weight | 520*420mm / 10kg |
| Max. Inspection Area | 460*400mm |
| Tilting Angle | ±30° |
| Manipulator | 5-axis with X / Y / Z1 / Z2 / T |
| Industrial PC | |
| Monitor | 24’’ FHD LCD Display |
| System OS | Windows 10 64bit |
| Hard disk | 1TB |
| RAM | 8GB |
| CPU model | Intel i7 Processor |
| Other Features | |
| Energy Saving | X-Ray Auto-off when it's out of work over than 5 minutes |
| X-Ray Safety | <1μSv/h (Meets All International Standards) |
| Authority Management | Fingerprint Access Magnagement System, and Support Password Accessing. |
| Safety Operation | Electromagnetic Interlock, Warning Light and Real-time Radioation Leakage Monitor |
| * Specifications are subject to change without notice, All trademarks are the property of the system maker. | |

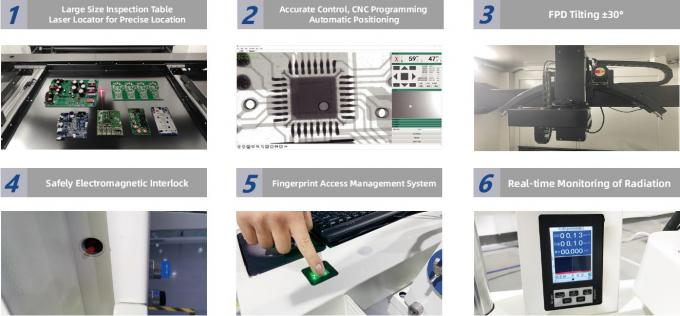

FEATURES of X-ray machine:
90KV 5μm X-ray tube, FPD Detector.
Multi-function workstation, X-Y multi-axis movement. ±60° "Arc" motion(Option).
Motion controls include: X/Y table motion plus Z axis tube and detector movement, ±60° tilt motion (option).
Multi-function DXI image processing system.
X/Y programming function for multiple image inspection routines
Max. loading area 420mm x 420mm, max. detection area 380 x 380mm, with ~300X System Magnification.
BGA void/area auto-measurement plus report generation.
APPLICATION of Xray machine:
LED, SMT, BGA, CSP, Flip Chip Inspection.
Semiconductor, Packaging components, Battery Industry.
Electronic components, Auto parts, Photovoltaic Industry.
Aluminum Die Casting, Moulding Plastic.
Ceramics, Other Special Industries
Description of AX7900:
90KV 5μm X-ray tube, FPD Detector. Multi-function workstation, XY multi-axis movement standard with ±60° tilt motion (option). Z axis movement for x-ray tube & FPD to increase/decrease magnification/FOV. Convenient target point positioning system. Multi-function DXI image processing system with XY programming for multiple image inspection routines. Max. loading area 420mm x 420mm , max. detection area 380 x 380mm, with ~300X System Magnification.
Our Services
Help customer analyze product project and provide detection solution.
Freely sample detection test.
Provide professional detection solution.
Skilled jig design services.
Provide shipping/delivery information checking service.
One year guarantee, all life maintain promise.
24 hours feedback speed by email of others.
FAQ:
1. How about the package? Is it safe during the delivery?
All X-ray inspection machine is packed by standard strong wooden carton.It is safe when shipping.
2. Do you provide the Warranty? How about the after sales service?
1 year warranty free for spare parts, Whole life technicial support.
We have professional after sales team, if any question, assistant videos are also provided in after-sale service.
3. If we come to your factory, if you will provide the free training?
Yes, warmly welcome you to visit our factory, we will arrange the free training for you.

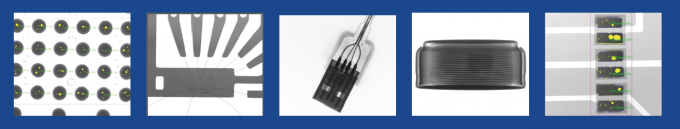

Xray images of Xray machine:
