Mô tả sản phẩm

Place of Origin:	China
Brand Name:	Unicomp
Certification:	CE, FDA
Model Number:	AX7900

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	can negotiate
Packaging Details:	Wooden Case, Waterproof, Anti-collision
Delivery Time:	15 days after order confirmation
Payment Terms:	T/T, L/C
Supply Ability:	300 sets per month

Detailed Product Description

Name:	Unicomp X-ray Inspection Machine	Application:	SMT, EMS,BGA, Electronics, CSP , LED , Flip Chip , Semiconductor
Voltage:	0~90kV (Adjustable)	Detector:	Flat Panel Detector (FPD)
Pixel Size:	85μm	Focus Spot Size:	5μm
X-Ray Safety:	<1μSv/h (Meets All International Standards)
High Light:	5um Unicomp X Ray Machine Unicomp X ray Machine AX7900 X ray machine

Cost effective high quality of Micro Focus X-ray machine AX7900 for SMT BGA QFN Soldering void check

Description of AX7900:

90KV 5μm X-ray tube, FPD Detector. Multi-function workstation, XY multi-axis movement standard with ±60° tilt motion (option). Z axis movement for x-ray tube & FPD to increase/decrease magnification/FOV. Convenient target point positioning system. Multi-function DXI image processing system with XY programming for multiple image inspection routines. Max. loading area 420mm x 420mm , max. detection area 380 x 380mm, with ~300X System Magnification.

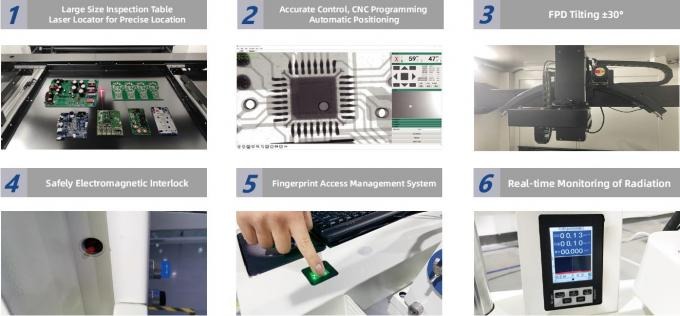

FEATURES of X-ray machine AX7900:

90KV 5μm X-ray tube, FPD Detector.
Multi-function workstation, X-Y multi-axis movement. ±60° "Arc" motion(Option).
Motion controls include: X/Y table motion plus Z axis tube and detector movement, ±60° tilt motion (option).
Multi-function DXI image processing system.
X/Y programming function for multiple image inspection routines
Max. loading area 420mm x 420mm, max. detection area 380 x 380mm, with ~300X System Magnification.
BGA void/area auto-measurement plus report generation.

APPLICATION of Xray machine:

LED, SMT, BGA, CSP, Flip Chip Inspection.
Semiconductor, Packaging components, Battery Industry.
Electronic components, Auto parts, Photovoltaic Industry.
Aluminum Die Casting, Moulding Plastic.
Ceramics, Other Special Industries

Specifications of Xray machine:

System Summary
Footprint	1200(W)×1200(D)×1500(H)mm
Machine Weight	1130 kg
Power Supply	AC 110/220V, 50/60Hz
Plywood Packing Size	1350(W)×1350(D)×1800(H)mm
Packing Weight	1330 kg
Power Consumption	1.3 kW
X-Ray Tube
Tube Type	Sealed
Max. Power	8W
Voltage	0~90kV (Adjustable)
Focus Spot Size	5μm
Imaging System
Detector	Flat Panel Detector (FPD)
Pixel Size	85μm
Effective Detection Area	65*65mm
Frame Rates	40fps
Pixel Matrix	768*768
System Magnification	600X
Software
Auto-measuring	BGA Soldering Voids Auto-measuring and Support Data/Graphic Output
Multiple Measuring Tools	Support Measuring Distance, Angle, Diameter, Polygon, PTH filling rate, etc.
CNC Mode	CNC Programmable Inspection, Easy Operation and User Friendly
Real-time Display	Real-time Displaying the Working Data of Voltage, Current, Angle, Date, etc
Navigation	Convenient Target Point Positioning System
Motion Control System
Movement Control	Joystick, Keypad & Mouse
Max. Loading Area/Weight	520*420mm / 10kg
Max. Inspection Area	460*400mm
Tilting Angle	±30°
Manipulator	5-axis with X / Y / Z1 / Z2 / T
Industrial PC
Monitor	24’’ FHD LCD Display
System OS	Windows 10 64bit
Hard disk	1TB
RAM	8GB
CPU model	Intel i7 Processor
Other Features
Energy Saving	X-Ray Auto-off when it's out of work over than 5 minutes
X-Ray Safety	<1μSv/h (Meets All International Standards)
Authority Management	Fingerprint Access Magnagement System, and Support Password Accessing.
Safety Operation	Electromagnetic Interlock, Warning Light and Real-time Radioation Leakage Monitor
* Specifications are subject to change without notice, All trademarks are the property of the system maker.
