Mô tả sản phẩm
Place of Origin: | China |
---|---|
Brand Name: | UNICOMP |
Certification: | CE, FDA |
Model Number: | AX8200 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1Set |
---|---|
Price: | can negotiate |
Packaging Details: | Wooden Case, Waterproof, Anti-collision |
Delivery Time: | 30 days |
Payment Terms: | T/T, L/C |
Supply Ability: | 300 sets per month |
Detailed Product Description
Tube Voltage: | 100KV | Industry: | Electronics Industry |
---|---|---|---|
Size: | 1080(L)x1180(W)x1730(H)mm | X-ray Leakage: | < 1uSv/h |
Weight: | 1150kg | Power Consumption: | 0.8kW |
High Light: |
BGA Void Measurement X Ray Machine0.8kW X Ray MachinePCBA X Ray Security Scanner |
X-Ray Inspection Machine Electronics BGA Standard Multifunction
Technical Data
System Summary | |
Footprint | 1080(W)×1180(D)×1730(H)mm |
Machine Weight | 1050 kg |
Power Supply | AC 110~220V, 50/60Hz |
Plywood Packing Size | 146(W)×128(D)×196(H)cm |
Packing Weight | 1160 kg |
Power Consumption | 1.0 kW |
X-Ray Tube | |
Tube Type | Sealed |
Max. Power | 8W |
Voltage | 0~90kV (Adjustable) |
Focus Spot Size | 5μm |
Imaging System | |
Detector | Flat Panel Detector (option 4’’ i.i. Detector) |
Pixel Size | 85μm |
Effective Detection Area | 130*130mm |
Frame Rates | 20fps |
Pixel Matrix | 1536*1536 |
System Magnification | 600X |
Software | |
Auto-measuring | BGA Soldering Voids Auto-measuring and Support Data/Graphic Output |
Multiple Measuring Tools | Support Measuring Distance, Angle, Diameter, Polygon, PTH filling rate, etc. |
CNC Mode | CNC Programmable Inspection, Easy Operation and User Friendly |
Real-time Display | Real-time Displaying the Working Data of Voltage, Current, Angle, Date, etc |
Navigation | Laser Locator for Precise Location |
Motion Control System | |
Movement Control | Joystick, Keypad & Mouse |
Max. Loading Area/Weight | 510*420mm / 10kg |
Max. Inspection Area | 435*385mm |
Oblique Views | Max. ±60° |
Manipulator | 5-axis with X / Y / Z1 / Z2 / T |
Industrial PC | |
Monitor | 22’’ FHD LCD Display |
System OS | Windows 10 64bit |
Hard disk | 1TB |
RAM | 8GB |
CPU model | Intel i7 Processor |
Other Features | |
Energy Saving | X-Ray Auto-off when it's out of work over than 5 minutes |
Safety Operation | Electromagnetic Interlock and warning Light |
Portable Design | Mounted with Wheels on Machine Bottom |
X-Ray Safety | <1μSv/h (Meets All International Standards) |
* Specifications are subject to change without notice, All trademarks are the property of the system maker. |
Widely applied for BGA , CSP , Flip Chip, LED , Fuse,Diode, PCB, Semiconductor, Battery Industry, Small Metal Casting, Electronic Connector Module, Cables, Aerospace Components, Photovoltaic Industry, etc.

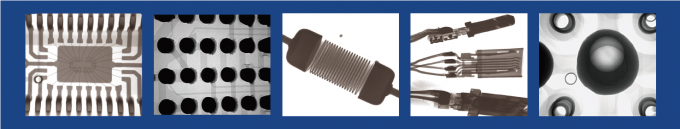

X-Ray Images
Applications:
BGA , CSP , LED , Flip Chip , Semiconductor,
Battery Industry , Small Metal Casting,
Electronic Connector Module,
Aerospace Components , Photovoltaic Industry,
Other Special Industries.
