Unicomp AX7900 Digital X Ray Machine 90kV Tube FPD Imaging System For SMT EMS BGA

Danh mục:

Unicomp

Từ khóa:

xray 3d sửa máy x ray công nghiệp , sửa máy x ray công nghiệp , máy kiểm tra x ray , kiểm định an toàn phóng xạ , máy x ray công nghiệp , cho thuê máy x ray , mua bán máy x ray cũ mới , máy x ray cũ mới , xray 3d , x ray 3d , xrf , xrf cũ mới , sửa máy đo xrf

Vận chuyển giao hàng toàn quốc

Phương thức thanh toán linh hoạt

Gọi ngay 0974692294 để mua và đặt hàng nhanh chóng

Mô tả sản phẩm

Place of Origin:	China
Brand Name:	Unicomp
Certification:	CE, FDA
Model Number:	AX7900

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	can negotiate
Packaging Details:	Wooden Case, Waterproof, Anti-collision
Delivery Time:	15 days after order confirmation
Payment Terms:	T/T, L/C
Supply Ability:	300 sets per month

Detailed Product Description

Name:	Unicomp X-ray Inspection Machine	Application:	SMT, EMS,BGA, Electronics, CSP , LED , Flip Chip , Semiconductor
Voltage:	0~90kV (Adjustable)	Detector:	Flat Panel Detector (FPD)
Pixel Size:	85μm	Focus Spot Size:	5μm
X-Ray Safety:	<1μSv/h (Meets All International Standards)
High Light:	FPD Imaging Digital X Ray Machine 90kV Digital X Ray Machine SMT EMS x ray equipment

Unicomp AX7900 X-ray with 90kV Tube and FPD imaging system with automatic SMT BGA measurement per IPC 610

Specifications of Xray machine:

System Summary
Footprint	1200(W)×1200(D)×1500(H)mm
Machine Weight	1130 kg
Power Supply	AC 110/220V, 50/60Hz
Plywood Packing Size	1350(W)×1350(D)×1800(H)mm
Packing Weight	1330 kg
Power Consumption	1.3 kW
X-Ray Tube
Tube Type	Sealed
Max. Power	8W
Voltage	0~90kV (Adjustable)
Focus Spot Size	5μm
Imaging System
Detector	Flat Panel Detector (FPD)
Pixel Size	85μm
Effective Detection Area	65*65mm
Frame Rates	40fps
Pixel Matrix	768*768
System Magnification	600X
Software
Auto-measuring	BGA Soldering Voids Auto-measuring and Support Data/Graphic Output
Multiple Measuring Tools	Support Measuring Distance, Angle, Diameter, Polygon, PTH filling rate, etc.
CNC Mode	CNC Programmable Inspection, Easy Operation and User Friendly
Real-time Display	Real-time Displaying the Working Data of Voltage, Current, Angle, Date, etc
Navigation	Convenient Target Point Positioning System
Motion Control System
Movement Control	Joystick, Keypad & Mouse
Max. Loading Area/Weight	520*420mm / 10kg
Max. Inspection Area	460*400mm
Tilting Angle	±30°
Manipulator	5-axis with X / Y / Z1 / Z2 / T
Industrial PC
Monitor	24’’ FHD LCD Display
System OS	Windows 10 64bit
Hard disk	1TB
RAM	8GB
CPU model	Intel i7 Processor

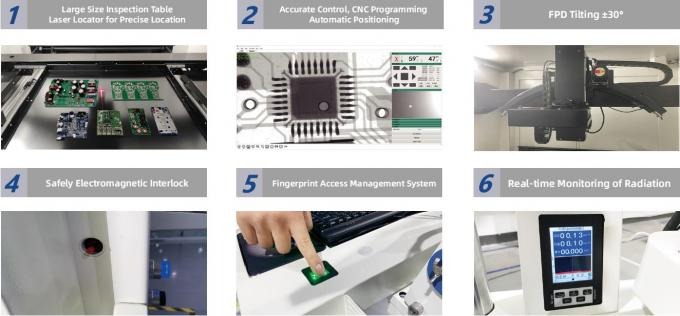

Other Features
Energy Saving	X-Ray Auto-off when it's out of work over than 5 minutes
X-Ray Safety	<1μSv/h (Meets All International Standards)
Authority Management	Fingerprint Access Magnagement System, and Support Password Accessing.
Safety Operation	Electromagnetic Interlock, Warning Light and Real-time Radioation Leakage Monitor
* Specifications are subject to change without notice, All trademarks are the property of the system maker.

Description of AX7900:

90KV 5μm X-ray tube, FPD Detector. Multi-function workstation, XY multi-axis movement standard with ±60° tilt motion (option). Z axis movement for x-ray tube & FPD to increase/decrease magnification/FOV. Convenient target point positioning system. Multi-function DXI image processing system with XY programming for multiple image inspection routines. Max. loading area 420mm x 420mm , max. detection area 380 x 380mm, with ~300X System Magnification.

FEATURES of X-ray machine AX7900:

90KV 5μm X-ray tube, FPD Detector.
Multi-function workstation, X-Y multi-axis movement. ±60° "Arc" motion(Option).
Motion controls include: X/Y table motion plus Z axis tube and detector movement, ±60° tilt motion (option).
Multi-function DXI image processing system.
X/Y programming function for multiple image inspection routines
Max. loading area 420mm x 420mm, max. detection area 380 x 380mm, with ~300X System Magnification.
BGA void/area auto-measurement plus report generation.
