TruView™ Prime

TruView™
Prime X-ray System

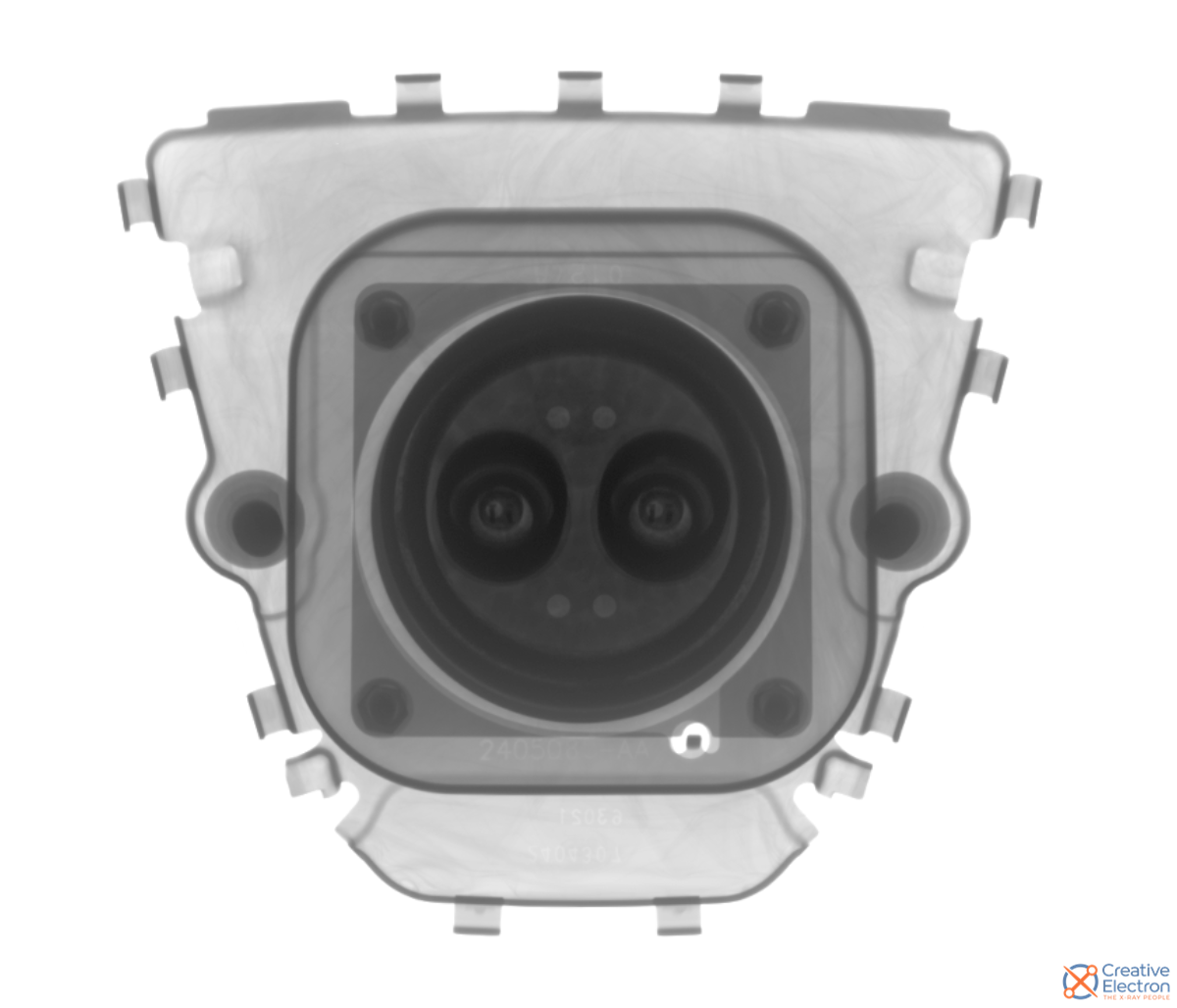

The TruView™ Prime is the most powerful benchtop X-ray system in the market today. The real-time X-ray images are available moments after you click a button. The live image shows the X-ray of your device as you move it with an automated stage. TruView™ Software runs analysis with easy to program recipes.

Features

• Fully automated – easy to create inspection recipes
• Available in Standard or Custom configurations
• Up to 130kV microfocus X-ray source
• 12”x 14” sample table, fully viewable
• Choice of detectors and sources to match your need
• Powerful and intuitive TruView™ software

Solving Problems in Real-time

The TruView™ Prime is our best seller X-ray inspection system. These systems – both in Standard and Custom configurations – support research and development, failure analysis, and quality assurance efforts across countless industries. Make X-ray vision your team’s superpower.

Specifications

X-ray Source: Up to 130kV (variable)
Image Detector: up to 17”x17” FPD
Manipulator: Fully automated stage
Sample Stage: 14” x 12”
System Dimensions: 31” x 32” x 35”
Power Requirements: 110-220VAC, <10A (std office/lab outlet)
Radiation Safety: FDA compliant and CE certified. Cabinet fully shielded with multiple interlocks, keyed start switch, and emergency stop switch. Certified to operate worldwide.
