Thiết bị kiểm tra lò xo tải lực thấp AFFRI - PC SERIES

Danh mục:

Máy đo Độ Bền - Kéo, Nén, Xoắn

Vận chuyển giao hàng toàn quốc

Phương thức thanh toán linh hoạt

Gọi ngay 0974692294 để mua và đặt hàng nhanh chóng

Mô tả sản phẩm

Đặc Tính Kỹ Thuật

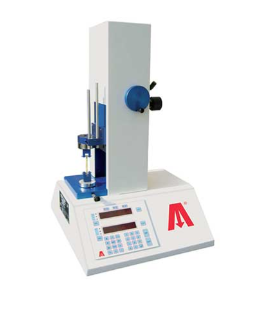

SPRING TESTER - PC SERIES

Equipment capable of carrying out tensile and compression tests.
This is a manual operation instrument offering two speeds, fast and slow.
Two adjustable stops are provided for sets of tests.
“C” structure with 197 mm working width.
Two (2) cells can be inserted in a range from 1 to 50 Kg.
The instrument is equipped with digital optic line for length measurements with 0.01
indexing
and electronic load cell to test spring strength.
Automatic compensation of load cell give.

DISPLAY DIGITAL

Strengths and lengths are visualised on two displays by operating the push button panel.

Kgs. and Newton are the commutable units, however pounds and inches are also available on request.
The following functions can be pre-set through keyboard:
– autozero
– recalibration
– multicell
– tolerances
– data transmission rs 232
– PEAK FUNCTION

Thông Số Kỹ Thuật

MOD.	PC1	PC2	PC5	PC10	PC20	PC50
CAPACITIES N	10	20	50	100	200	500
MINIMUM INDEXING N	0.0004	0.0008	0.002	0.004	0.008	0.02
WORKING HEIGHT mm	197
MIN INDEXING mm	0.01
ANVIL DIAMETER mm	30	30	30	50	50	50
POWER SUPPLY	230/110v
