SMT PCBA Electronics X Ray Machine Unicomp High Speed Inline With Automotive Identification

Danh mục:

Unicomp

Từ khóa:

xray3dsửamáyxraycôngnghiệp , sửamáyxraycôngnghiệp , máykiểmtraxray , kiểmđịnhantoànphóngxạ , máyxraycôngnghiệp , chothuêmáyxray , muabánmáyxraycũmới , máyxraycũmới , xray3d , xrf , xrfcũmới , sửamáyđoxrf

Vận chuyển giao hàng toàn quốc

Phương thức thanh toán linh hoạt

Gọi ngay 0974692294 để mua và đặt hàng nhanh chóng

Mô tả sản phẩm

Place of Origin:	China
Brand Name:	Unicomp
Certification:	CE, FCC, FAD
Model Number:	LX2000

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	On request
Packaging Details:	Wooden Case, Waterproof, Anti-collision
Delivery Time:	60 days after order confirmation
Payment Terms:	T/T, Western Union, L/C

Detailed Product Description

X-Ray Voltage:	130kV	Detector:	FPD
Focal Spot:	3μm	Control Mode:	CNC
High Light:	electronics x ray system x ray equipment

X-Ray Voltage:

130kV

Detector:

FPD

Focal Spot:

3μm

Control Mode:

CNC

High Light:

electronics x ray system

x ray equipment

Unicomp High Speed inline SMT PCBA X-Ray Inspection System with Automotive Identification OK / NG Result

Specifications

Item	Definition	Specs
System Parameters	Size	1385(L)x1400(W)x1620(H)mm
	Weight	2000kg
	Power	220AC/50Hz
	Power Consumption	3.5kW
X-ray Tube	Type	Closed
	Max.Voltage	130kV
	Max.Power	40W
	Spot Size	3μm
X-ray System	Intensifier	FPD
	Monitor	22 ‘’LCD
	System Magnification	200 X
Detection Region	Orbit Adjusting Range	80-350mm
X-ray Leakage		<1μSv/h
Control Mode		CNC Motion Mode

Features:

The LX-2000 is a versatile OnLine X-ray Machine designed for automated and semi-automated analysis. In addition to the OnLine capability, the LX-2000 can also be used in a Manual mode as a process monitoring/engineering workstation.

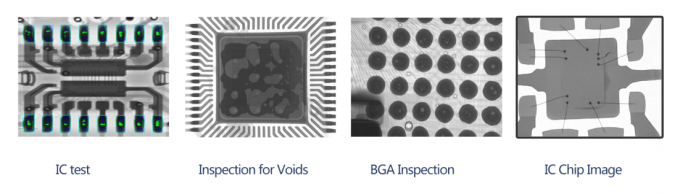

High resolution x-ray images are generated using a closed microfocus 130kV tube with leading edge FPD (Flat Panel Display) detectors. This imaging chain combination is excellent for multiple applications including; PCBA, Semiconductor, Encapsulated Components, and Solar Cell just to name a few.
