SMT BGA X Ray Detection Equipment Flip Chip FPD Detector 130KV For Semicon

Danh mục:

Unicomp

Từ khóa:

xray3dsửamáyxraycôngnghiệp , sửamáyxraycôngnghiệp , máykiểmtraxray , kiểmđịnhantoànphóngxạ , máyxraycôngnghiệp , chothuêmáyxray , muabánmáyxraycũmới , máyxraycũmới , xray3d , xrf , xrfcũmới , sửamáyđoxrf

Vận chuyển giao hàng toàn quốc

Phương thức thanh toán linh hoạt

Gọi ngay 0974692294 để mua và đặt hàng nhanh chóng

Mô tả sản phẩm

Product Details:

Place of Origin:	China
Brand Name:	Unicomp
Certification:	CE, FCC
Model Number:	AX9100

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Polywood case package data:166cm156cm195cm total weight:1900KG
Delivery Time:	45 days
Payment Terms:	T/T

Detailed Product Description

Function:	PCBA，BGA Inspection	Equipment:	Quality Check
Properties:	Medical X-ray Equipments & Accessories	Instrument Classification:	Class II
Name:	Portable X Ray Machine	Type:	Medical Consumables
High Light:	SMT BGA X Ray Detection Equipment Flip Chip X Ray Detection Equipment 110KV X Ray Inspection Equipment

Application

Semiconductor, Packaging components, Battery Industry,
Electronic components, Automotive parts, Photo-voltaic,
SMT, BGA, CSP, Flip Chip, LED Detection
Aluminium Die-casting, Moulding Plastic.
Ceramics, other special industries.

Features

130kV (Option 110KV) 7µm closed X-ray tube, high speed & Millions pixels high resolution FPD
X-ray tube & detector automatic lifting and descending, with convenient target point positioning system
Multi-function DXI image processing system, CNC programmable detection
Max. loading area φ570mm, max. inspection area 450mm*450mm, with 1600X Magnification
Tilt detection with 55° and rotation 360°operation together with 6 axis movement

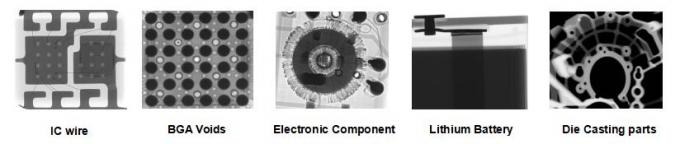

X-ray Images

Technical Specifications

Item	Description	Specifications
X-Ray Tube	Max. Voltages, Type	130kV (Option 110KV), Closed
	Power Consumption	40W(25W)
	Focal Spot Size	7 μm
	Magnification	1600X
Detector	Detector Type	FPD
	Resolution	101 LP/cm
	Effective Area	116.4mm ×145.7mm
System Computer	Operating System	Industrial PC, Win 7, i7 Processor
System Computer	Monitor	22” LCD
Software	User Interface	Unicomp Multi-function DXI image processing system
Working Platform	Max. Loading Area	φ570mm
	Max. Inspection Area	450mm×450mm
	Max. Loading Weight	10kg
	Movement Control	Joysticks, Mouse and Keypads
	Motion Range (Up and Down)	200mm
	Table Tilting Angle	55° Tilting and 360° Rotation
Navigation	Camera	HD Camera, Laser point
Axis	Manipulator	6-axis with X1/ X2 / Y / Z / T(55°) / R(360°)
Equipment Features	Power Supply	AC 110~220V (±10%) 50Hz, 2.0kW
	Outline Dimensions	1450(W)×1500(D)×1850(H)mm
	System Weight	1900 kg
Optional Accessories	None
Warranty	One year warranty , free replacement the parts due to original manufacturer's defect, but expect of man-made damages and force majeure
