Mô tả sản phẩm
| Place of Origin: | China |
|---|---|
| Brand Name: | UNICOMP |
| Certification: | CE |
| Model Number: | UNC320 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1Set |
|---|---|
| Price: | Can Negotiate |
| Packaging Details: | Wooden Case, Waterproof, Anti-collision |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10 sets per month |
Detailed Product Description
| Model: | In-line Continous | Maximum Penetration（FE）: | 48mm |
|---|---|---|---|
| Tube Voltage: | 320KV | Focal Size: | 0.4mm/1.0mm |
| Size: | 2290mm*1604mm*2598mm（L*W*H） | Pixel Size: | 139μm |
| Weight: | 7.5T | Power Consumption: | 9kW |
| High Light: |
industrial x ray equipmentindustrial x ray systems |
||
Aerospace Foundry Industrial X Ray Machine UNC320 Aluminum Iron Casting
UNC320 is a compact industrial X-ray inspection system designed for broad aerospace and foundry (automotive) applications. Flexible 2D inspection of casting defects and production flaws provide the confidence of a safe and reliable analysis.
1. Compact X-ray system for high-quality, dependable inspection results
2. Manual and programmable X-ray and computed tomography inspection
3. True lnspect ADR (automatic defect recognition) for foundry applications
4. Responsive solution that can be adapted to your special application needs
5. Review workstation for image evaluation
6. Data Matrix Code reader for part type recognition
7. Floor tilt axis for maximum versatility
| Attribute | Respective Value |
| Maximum penetration(FE) | 48mm |
| Equipment weight | 7.5T |
| System Dimension | 2290mm*1604mm*2598mm(L*W*H) |
| X-ray Tube | 320KV |
| Power | 800W/1800W |
| Pixel Pitch | 139μm |
| Focal size | 0.4mm/1.0mm |
| Image Area | 250mm x 300mm |

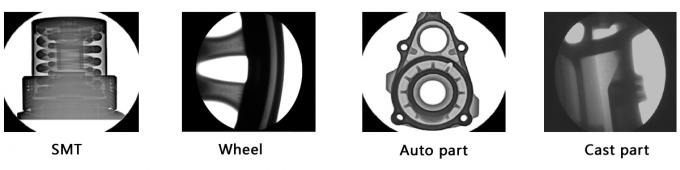

Inspection Images:
.jpg)
