Multipurpose Unicomp X Ray System , NDT Inspection Machine 160KV UNI160-Y2-D9

Danh mục:

Unicomp

Từ khóa:

xray3dsửamáyxraycôngnghiệp , sửamáyxraycôngnghiệp , máykiểmtraxray , kiểmđịnhantoànphóngxạ , máyxraycôngnghiệp , chothuêmáyxray , muabánmáyxraycũmới , máyxraycũmới , xray3d , xrf , xrfcũmới , sửamáyđoxrf

Vận chuyển giao hàng toàn quốc

Phương thức thanh toán linh hoạt

Gọi ngay 0974692294 để mua và đặt hàng nhanh chóng

Mô tả sản phẩm

Place of Origin:	China
Brand Name:	UNICOMP
Certification:	CE, FDA
Model Number:	UNI160-Y2-D9

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	can negotiate
Packaging Details:	Wooden Case, Waterproof, Anti-collision
Delivery Time:	30 days
Payment Terms:	T/T, L/C
Supply Ability:	10 sets per month

Detailed Product Description

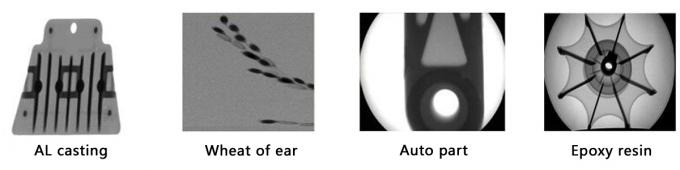

Name:	X-ray Inspection Machine	Application:	Aluminum Casting, Iron Casting, Auto Parts, Wheels, Metal Products, Refractory Materials
Tube Voltage:	160KV, 225KV Optional	X-ray Leakage:	< 1uSv/h
Weight:	6T	Power Consumption:	8kW
High Light:	x ray detection equipment x ray inspection equipment Multipurpose Unicomp X Ray System

Unicomp X Ray Online Wheel Hub Industry NDT Detection Machine 160KV UNI160-Y2-D9

Feature:

● Covers a wide range of parts inspection.

● Multipurpose, high resolution.

● High availability system.

● Excellent quality of detection image.

● Safety operation of equipment.

● Flexibility tooling and fixture.

● Easy to operate, user-friendly software design.

● customized to provide solutions.

● After-sales service of the entire network.

● Low cost of testing services.

System Parameters	Dimensions	3250mm1710mm2450mm(LWH)
	Equipment weight	18.65T
	Power	9KW
	Work	In-line continous
	Detection Area	13’’-22’’ Aluminum alloy wheel hub
	Detection Speed	45s/pcs(18’’)wheel
	Work environment	5-40° ≤80%HR
	Power supply	Three-phase five wire system AC380V
	X-ray leakage dose rate	≤1uSv/h
X-ray Generator	Tube voltage	160kV/225kV
	Power	480W/1800W
	Focal size	0.5mm/1.0mm
Imaging system	System resolution rate	2.8LP/mm
Imaging system	System sensitivity	1-1.8%
Software Functions	Image processing	Brightness and contrast adjustment; stacking frames; window width and level adjustment; image enhancement, filtering, sharpening, invert, relief and bubble measure;move, zoom in, zoom out; display image scaling; display the current mouse pointer image coordinate and the gray value
	Image measurement	Distance, radius, polygon, angle measurement; arrows and text labels; save the processed image;
	Others	Setting the camera rotating screen; exposure time; static,dynamic image display and save, video display and save
	Automatic identification of the wheel hub , automatic calculation of the bubble;
Additional Function	Wheel clamping synchronous drive to make sure the orecise control.
	Intelligent algorithm with X-Ray source and the flat panel walking swing angle.
	New wheel hub test has teaching function, manual setting, automatic save functions
	Automatic wheel hub and software self matching
	Mechanical modular design and compatible with 160KV/225KV X-ray source with 9 inch tablet intensifier and installation
	Automatic calculate the bubble of the wheel hub,set aside the output interface of the automatic sorting
	Set aside industrial cloud interface, data and pictures in real time upload, with traceability and large data analysis function (Optional)
