High Precision Inline X Ray Inspection System For Pouch Li-Ion Cell Battery

Danh mục:

Unicomp

Từ khóa:

xray3dsửamáyxraycôngnghiệp , sửamáyxraycôngnghiệp , máykiểmtraxray , kiểmđịnhantoànphóngxạ , máyxraycôngnghiệp , chothuêmáyxray , muabánmáyxraycũmới , máyxraycũmới , xray3d , xrf , xrfcũmới , sửamáyđoxrf

Vận chuyển giao hàng toàn quốc

Phương thức thanh toán linh hoạt

Gọi ngay 0974692294 để mua và đặt hàng nhanh chóng

Mô tả sản phẩm

Place of Origin:	China
Brand Name:	Unicomp
Certification:	ISO9001，ISO14004,OHSAS18001,
Model Number:	LX-1R30-100

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	Can negotiate
Packaging Details:	Wooden Case
Delivery Time:	One month
Payment Terms:	T/T
Supply Ability:	100Sets/Month

Detailed Product Description

Dimension（L×W×H）:	5700mmX2500mmX1800mm	Weight:	3.5t
Power:	2.5KW	Max.Voltage:	100kv
Resolution:	110 Lp/cm	Focal Spot Size:	5um
High Light:	Inline X Ray Inspection System High Precision X Ray Inspection System Pouch Cell X Ray Inspection System

High Precision Inline X-Ray Equipment for Pouch Li-Ion Cell Battery Inspection

Features:

1.Automatic detection

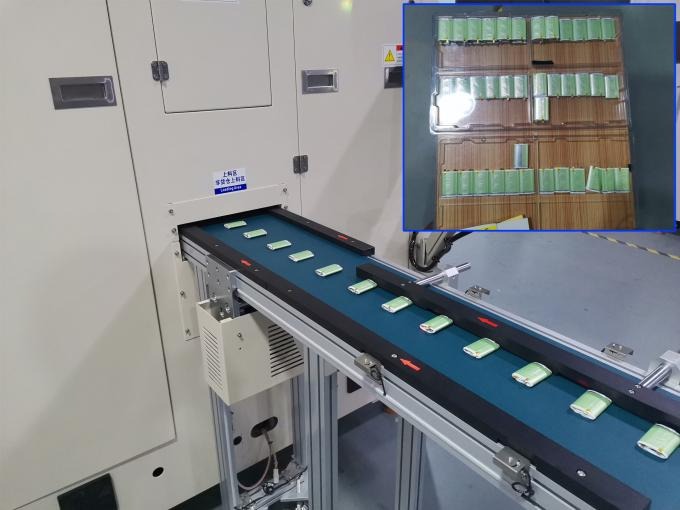

High automation, automatic loading,detection, sorting qualified/NG products.

2.High efficiency

The machine is suitable for batch inspection with cam indexers controlling eight degrees turntable running in high speed and two sets of imaging system.

3.Images and data real-time online display

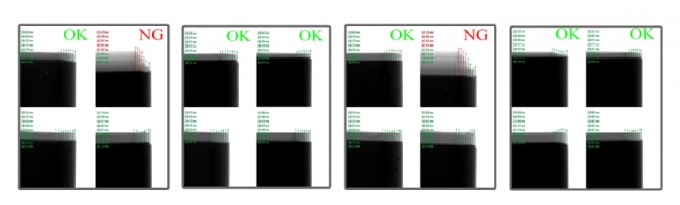

Test data and images of many parts of the same battery is shown in the same software interface, convenient observation recognition.

4.Quick changing model

Only replace jig if changing test products.

5.Safety protection
The whole equipment safety interlock, triple protection function, any part of the fuselage surface radiation meet safety standards.

Aftersales service:
Ø A professional service team
Ø Country-wide network
Ø 24/7 hotline
Ø Onsite installation, debugging and training services
Ø Scheduled call & visits
Ø Life-long free software upgrading

Prodcution Capacity

Ø Wuxi Factory: 6000M2

Ø Shenzhen Factory: 9000M2

Ø Chongqing Factory:8500M2

Ø Current Capacity: 300 Sets /Month

Ø Expansion Capacity: 1000 Sets/Month

Company Introduction:

15 years focused on X-ray technology R & D and equipment mfg.

A national Hi-tech enterprise with international vision

3 modern R & D and manufacturing factories, 2 software companies

240 patents & 30 software copyright

300 professional R & D engineers, sales and service staff

Company certified by ISO9001, ISO14001 and OHSAS18001 system

Products complied with CE, FDA and passed Chinese MPS testing

Provincial Engineering Technology Research Center

Provincial science and technology award

Monthly production capacity up to 500 sets

System Parameters	Dimension(L×W×H)	5700mmX2500mmX1800mm
	Weight	3.5t
	Working Environment	0～40℃
	Power	2.5KW
	Accuracy	±60μm
	Operating Mode	In-line
X-ray Tube	Type	Closed
	Max.Voltage	100kv
	Max.Current	0.2mA
	Focal Spot Size	5um
	Quantity	2
Image Detector	Type	Image Intensifier
	Resolution	110 Lp/cm
	Size	4”
	Quantity	2
Applied to		Polymer Lithium Battery
Max.Capacity		30ppm(2-poin Pattern)/15ppm(4-point)
Operation Ratio		≥95%
Applicable Size		Width:35-120 Length:50-190 Thickness:2-12 Total length:70-210
Items		Alignment Metric
Customer Cases		Highpower/EBTEB/Bike
Equipment Features		100KV closed X-ray tube, high -resolution intensifier ; High speed, high stability ; Modular design with high expansibility, customized automatic battery loading and unloading Automatic docking with production lines, unattended operation; *Unicomp-owned R&D of in-line lithium battery inspection software system
