Máy quét hàng hóa. Máy X-Ray UNICOMP UNX5030A

Danh mục:

Unicomp

Từ khóa:

xray 3d sửa máy x ray công nghiệp , sửa máy x ray công nghiệp , máy kiểm tra x ray , kiểm định an toàn phóng xạ , máy x ray công nghiệp , cho thuê máy x ray , mua bán máy x ray cũ mới , máy x ray cũ mới , xray 3d , x ray 3d , xrf , xrf cũ mới , sửa máy đo xrf , an ninh , quét

Vận chuyển giao hàng toàn quốc

Phương thức thanh toán linh hoạt

Gọi ngay 0974692294 để mua và đặt hàng nhanh chóng

Mô tả sản phẩm

Tunnel Size:	500mm(W)×300mm(H)	Weight:	300kg
Multi Voltage:	80KV	Dimension:	1600mm(L)×810mm(W)×1120mm(H)
Resolution:	40AWG (Typical) , 34(Standard)	Inspection Speed:	0.22m/s
High Light:	x ray scanning machine, airport security x ray machine

Public Single Energy Security X Ray Baggage Scanner UNX5030A

Product Description:

UNX series X-ray baggage scanner is a multi-energy type X-ray inspection series manufactured by Unicomp technology. Especially for the safety check of suitcases, backpacks, parcels and express goods, can be widely used in traffic logistics, civil aviation, customs ports, conference centers, hotels, cultural and sports and other large-scale activities, express logistics. Product design combined with industry characteristics, integration of advanced industrial design concept, the overall shape simple and beautiful.

Features:

1. Detection speed 0.22m / s;

2. The maximum penetration:8mm thick steel plate;

3. Could detect the largest object size up to 500mm × 300mm;

4. Remote technical service support;

5. Very low radiation dose leakage, close to natural costs, to meet international and domestic health and safety standards;

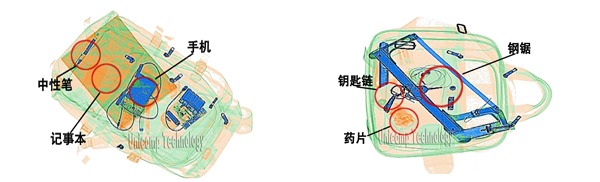

6. Professional material recognition ability: orange represents organic matter, blue represents inorganic matter, green represents metal and mixture;

7. Explosive and drug-assisted detection functions, according to the composition of explosives and drug substances to automatically detect and alarm.

System Parameters	Dimensions	1600mm(L)×810mm(W)×1040mm(H)
	Tunnel Size	500mm(W)×300mm(H)
	Weight	300kg
	Conveyor Height	675±10mm
	Inspection Speed	0.22m/s
	Max.Load Weight	100Kg(Even distribution)
	Resolution	40AWG (Typical) , 34(Standard)
	Penetration	10mm (Typical),8mm (Standard)
	Radiation Safety	Meets film safety ISO 1600
	X-ray Dose Rate	<0.4μGy/h (5cm away from the housing)
X-ray Generator	Anode Voltage	80Kv
	Cooling Cycle	Oil Cooling 100%
	Single Inspection Dose	<1.0μGy
Imaging System	X-ray Detector	Photodiode
	Gray Level	4096
	Monitor	17’’
Image Processing System	Image Enhancement	Black and white Inverse High-energy penetration Low-energy penetration Super-enhancement Elimination of organic or inorganic substances Variable absorption rate Pseudo-color *Arbitrary selection ( user selected ROI zoom ) ( 64X image magnification/no loss of resolution )
	Recognition	Orange for organic matter, blue for inorganic, green for metal and compound
	Image Playback	50 inspected images could be replayed
	Storage Capacity	No less than 100 thousand pieces of image
Additional Features	Standard Functions	Date/time display Baggage counter User management System operation clock X-ray on clock POST Image storage & retrieval Diagnosis & maintenance Dual-scan Image recognition trainging *Cloud data storage and analysis
Additional Features	Optional Functions	High density area alarm Explosives and drugs auxiliary examination *Dangerous goods image insertion
Installation Requirements	Operation/Storage Temperature	0~40℃,-5~50℃
	Humidity	10%~90%(No condensation)
	Power Supply	220VAC±5% 50Hz/60Hz
