Máy kiểm tra momen xoắn tải lực thấp AFFRI - Torquemeter TR Series

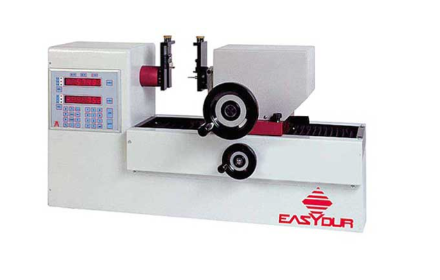

TORQUEMETER TR SERIES

     Equipment manually operated for right and left torque control on springs with two adjustable stops for the angular position, with horizontal enbloc structure and ball circulation accuacy guides.

     Its high definition electronic cell allows torque measurements while the angular positions are controlled by digital encoder with 0,1 degree minimum division. The elasticity of the torquemeter cell is automatically compensated.

     This torquemeter is supplied with tables, adjustable in order to set the torsion point, and either operates with the relative zero given by the spring contact, or with the absolute zero given by the anvil contact.

DIGITAL
     The digital part has a push button panel in order to visualize on two displays the torques and angles.
     Kgmm. and Nmm are the commutable units and on request, British measures can be supplied. These functions are set with keyboard and they provide for:

• AUTOMATIC ZEROSETTING.
  Possibility to zeroset angle and torque on any point.
• RECALIBRATION.
  Keys are provided for setting the sample torque, together with a key for storage.
• MULTICELL (option).
  Key for commutation should the cell have two different ampliflying thresholds.
• TOLERANCES.
  Three lights for rates over, under and within tolerance, may be lit at will with two keys.
• DATA TRANSMISSION.
  The machine is supplied with a RS 232 output for direct connection to an computer.
