Mô tả sản phẩm
Digital functionality from beam adjustments to observation and more
Ability to specify ROI in low-mag image and easily capture at desired magnification
Automated Multi-frame Panoramic function, Drift Correction, Auto Pre-Irradiation, STEM, EDX, various Specimen Holders, and Electron Beam Tomography are available for a wide variety of analysis needs.
"RuliTEM" based on the Revolution of Ultimate Luxury Imaging by Hitachi HT7800 TEM
Taking transmission electron microscopy to new heights of luxury and performance
| HT7800 | HT7820 | HT7830 | |
|---|---|---|---|
| Electron gun | W, LaB6 | ||
| Accelerating voltage | 20 - 120 kV (100 V/step variable) | ||
| Resolution (Lattice) | 0.20 nm （Off-axis, 100 kV） |
0.14 nm （Off-axis, 120 kV） |
0.14 nm （Off-axis, 120 kV） 0.19 nm （On-axis, 120 kV） |
| Maximum magnification | x600,000 | x800,000 | x1,000,000 |
| Stage maximum tilt angle | ±70° | ±30° | ±10° |
| Standard features | Auto focus, Microtrace, Autodrive, Live FFT display, Measurement function, Low dose, API (auto pre-irradiation), Image navigation function, Column with mild baking function, Whole view function, Drift correction function etc. | ||

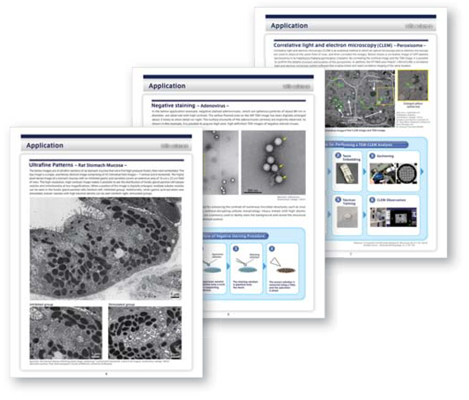

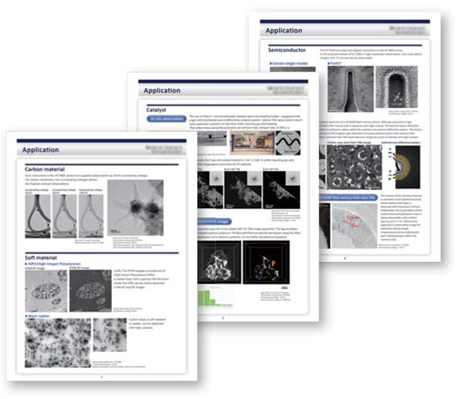

The Application Data Collection has a "Life Science" section and a "Materials and Semiconductors" section, introducing typical examples of measurements and applications in each field.
