AX9100 Unicomp X Ray Machine 130kV Close Tube For PCBA BGA QFN Soldering Void Check

Danh mục:

Unicomp

Từ khóa:

xray3dsửamáyxraycôngnghiệp , sửamáyxraycôngnghiệp , máykiểmtraxray , kiểmđịnhantoànphóngxạ , máyxraycôngnghiệp , chothuêmáyxray , muabánmáyxraycũmới , máyxraycũmới , xray3d , xrf , xrfcũmới , sửamáyđoxrf

Vận chuyển giao hàng toàn quốc

Phương thức thanh toán linh hoạt

Gọi ngay 0974692294 để mua và đặt hàng nhanh chóng

Mô tả sản phẩm

Place of Origin:	China
Brand Name:	Unicomp
Certification:	CE, FDA
Model Number:	AX9100

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	can negotiate
Packaging Details:	Wooden Case, Waterproof, Anti-collision
Delivery Time:	30 days
Payment Terms:	T/T, L/C
Supply Ability:	300 sets per month

Detailed Product Description

Name:	X Ray Pcb Inspection Machine	Application:	SMT, EMS,BGA, Electronics, CSP , LED, Semiconductor
Tube Voltage:	130KV	Warranty:	1 Year
Industry:	Electronics Industry	Size:	1350(L)x1250(W)x1700(H)mm
X-ray Leakage:	< 1uSv/h	Weight:	1900kg
Power Consumption:	1.6kW
High Light:	Soldering Void Unicomp X ray machine PCBA Unicomp X ray machine 130 kV X Ray Pcb Inspection Machine

130kV maintenance free close tube X-ray machine Unicomp AX9100 For PCBA BGA QFN soldering Void check

Technical Data

Item	Definition	Specs
System Parameters	Size	1350(L)x1250(W)x1700(H)mm
	Weight	1900kg
	Power	220AC/50Hz
	Power Consumption	1.6kW
X-ray Tube	Type	Closed
	Max.Voltage	130kV
	Max.Power	40W
	Spot Size	7μm
X-ray System	Intensifier	FPD
	Monitor	22 ‘’LCD
	System Magnification	1600 X
Detection Region	Max.Loading Size	Φ570mm
Detection Region	Max.Inspection Area	450mm x 450mm
X-ray Leakage		<1μSv/h

Features of SMT Xray AX9100:
● 90-130KV 7μm X-Ray tube.
● High speed & Millions pixels high resolution FPD.
● 1000X magnification, high-definition real-time image.

● One-button operation with 2.5D image display.
● Off-line programming function, navigation mode detection.
● 7 axis linkage, 70 degree tilt detection.

Our Services
Help customer analyze product project and provide detection solution.
Freely sample detection test.
Provide professional detection solution.
Skilled jig design services.
Provide shipping/delivery information checking service.
One year guarantee, all life maintain promise.
24 hours feedback speed by email of others.

Applications of Xray Machine AX9100:
● SMT, BGA, CSP, Flip Chip, LED Detection.
● Semiconductor, Packaging components, Battery Industry.
● Electronic components, Auto parts, Photovoltaic Industry.
● Aluminum Die-casting, Moulding Plastic.
● Ceramics, Other Special Industries.

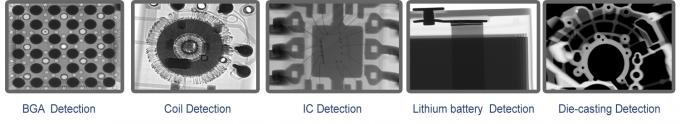

Test Images of Unicomp AX9100:
