Mô tả sản phẩm

Product Details:

Place of Origin:	China
Brand Name:	UNICOMP
Certification:	CE, FDA
Model Number:	AX8300

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	can negotiate
Packaging Details:	Wooden Case, Waterproof, Anti-collision
Delivery Time:	30 days
Payment Terms:	T/T, L/C
Supply Ability:	300 sets per month

Detailed Product Description

Name:	X Ray Inspection Machine	Max.sample Weight:	5kg
Tube Voltage:	100KV/110KV	X-ray Leakage:	< 1uSv/h
Weight:	1500kg	Power Consumption:	1.5KW
High Light:	pcb x ray inspection pcb inspection equipment High Resolution PCB X Ray Machine

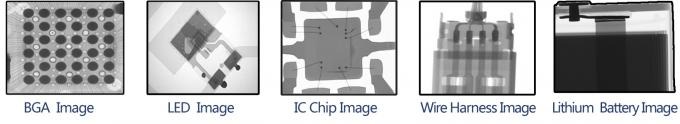

High resolution PCB X Ray Machine with high quality X-ray images

The AX-8300 is designed to address PCBA high resolution inspection requirements. The AX-8300 is the FIRST machine in the industry to utilize a special 110kV micro focus x-ray source! This is the Perfect “In Between” design that offers a solution when 90kV is not enough energy and 130kV is too much.
Using a state of the art FPD (Flat Panel Display) detection, the AX-8300 can generate extreme high magnification/resolution images that are similar to the highest resolution 90kV x-ray tubes can produce. Additionally, the AX-8300 offers 360 degree table rotation providing unlimited image views.

Model	AX8300
Max kV/type	110 kV(Option90 kV)/Sealed
Max.Electron beam power	25W(Option8W)
Focal spot size¹	7μm
System magnification	Up to 1000X
Imaging system(Option)	Flat Panel Detector
Manipulator	8-axis with tilt 50 degree
Measuring volume	Max load area 300x300mm²
Max.sample weight	5kg
Monitors	22" LCD
Cabinet dimensions	1100x1100x1650mm
Weight	1700kg
Radiation safety²	<1μSv/hr(<0.1mR/hr)at the cabinet surface 5cm
Control	Keyboard/Mouse/Joystick
Automated inspection	Standard
Primary applications	Chip inspection/Electronic components/Auto parts.etc
1.Focal spot size is a variable.Please consult the unicomp 2.X-ray Safety Commitment:All x-ray machines manufactured by Unicomp Technology meet the FDA-CDRH Regulation CFR 21 1020.40 Subchapter J for cabinet x-ray systems.The FDA-CDRH standard for cabinet x-ray systems states that radiation emissions will not exceed.5millirem/hr.2"from any external surface.Our machines are typically 15times less emission.
