Mô tả sản phẩm
| Place of Origin: | China |
|---|---|
| Brand Name: | Unicomp |
| Certification: | CE, FDA |
| Model Number: | AX8200MAX |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | can negotiate |
| Packaging Details: | Wooden Case, Waterproof, Anti-collision |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 300 pcs per month |
Detailed Product Description
| Tube Voltage: | 0~90kV (Adjustable) | Tube Type: | Sealed |
|---|---|---|---|
| Focus Spot Size: | 5μm | Detector: | Flat Panel Detector (FPD) |
| Packing Weight: | 1520 Kg | Power Supply: | AC 110/220V, 50/60Hz |
| Power Consumption: | 2.0 KW | X-Ray Safety: | <1μSv/h (Meets All International Standards) |
| High Light: |
EMS PCB Electronics X Ray MachineEMS Electronics X Ray MachineQFN NDT inspection equipment |
||
Widely applied for BGA, CSP, Flip Chip, LED, Fuse, Diode, PCB, Semiconductor, Battery Industry, Small Metal Casting, Electronic Connector Module, Cables, Aerospace Components, Photovoltaic Industry, etc.
Application Fields of X Ray Machine AX8200Max
.png)

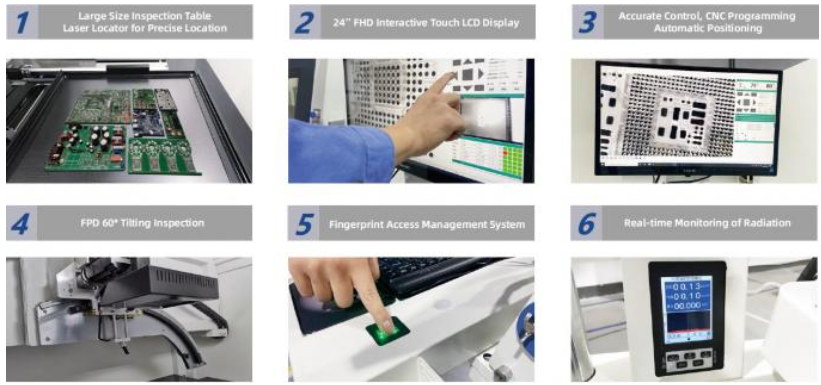

Functions and Features
.png)
Technical Parameters and Specifications of X Ray Machine AX8200Max
| System Summary | |
| Footprint | 1280(W)×1500(D)×1700(H)mm |
| Machine Weight | 1370 kg |
| Power Supply | AC 110/220V, 50/60Hz |
| Plywood Packing Size | 1750(W)×1920(D)×2000(H)mm |
| Packing Weight | 1520 kg |
| Power Consumption | 2.0 kW |
| X-Ray Tube | |
| Tube Type | Sealed |
| Max. Power | 8W |
| Voltage | 0~90kV (Adjustable) |
| Focus Spot Size | 5μm |
| Imaging System | |
| Detector | Flat Panel Detector (FPD) |
| Pixel Size | 85μm |
| Effective Detection Area | 130*130mm |
| Frame Rates | 20fps |
| Pixel Matrix | 1536*1536 |
| System Magnification | 600X |
| Software | |
| Auto-measuring | BGA Soldering Voids Auto-measuring and Support Data/Graphic Output |
| Multiple Measuring Tools | Support Measuring Distance, Angle, Diameter, Polygon, PTH filling rate, etc. |
| CNC Mode | CNC Programmable Inspection, Easy Operation and User Friendly |
| Real-time Display | Real-time Displaying the Working Data of Voltage, Current, Angle, Date, etc |
| Navigation | Convenient Target Point Positioning System |
| Motion Control System | |
| Movement Control | Joystick, Keypad, Mouse &Touch Panel |
| Max. Loading Area/Weight | 610*610mm / 10kg |
| Max. Inspection Area | 550*550mm |
| Oblique Views | Max. 60° |
| Manipulator | 6-axis with X / Y / Z1 / Z2 / T1 / T2 |
| Industrial PC | |
| Monitor | 24’’ FHD Interactive Touch LCD Display |
| System OS | Windows 10 64bit |
| Hard disk | 1TB |
| RAM | 8GB |
| CPU model | Intel i7 Processor |
| Other Features | |
| Door Open | Electric Sliding |
| X-Ray Safety | <1μSv/h (Meets All International Standards) |
| Authority Management | Fingerprint Access Magnagement System, and Support Password Accessing. |
| Safety Operation | Electromagnetic Interlock, Warning Light and Real-time Radioation Leakage Monitor |
* Specifications are subject to change without notice, All trademarks are the property of the system maker.

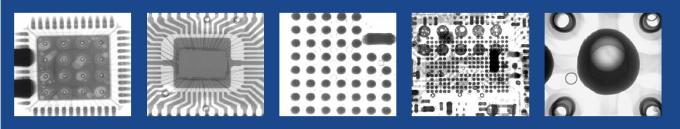

X-Ray Images
Dimensions and Appearance
