Electronics Benchtop X Ray Machine For PCB / BGA Connectivity And Analysis

Danh mục:

Unicomp

Từ khóa:

xray 3d sửa máy x ray công nghiệp , sửa máy x ray công nghiệp , máy kiểm tra x ray , kiểm định an toàn phóng xạ , máy x ray công nghiệp , cho thuê máy x ray , mua bán máy x ray cũ mới , máy x ray cũ mới , xray 3d , x ray 3d , xrf , xrf cũ mới , sửa máy đo xrf

Vận chuyển giao hàng toàn quốc

Phương thức thanh toán linh hoạt

Gọi ngay 0974692294 để mua và đặt hàng nhanh chóng

Mô tả sản phẩm

Place of Origin:	China
Brand Name:	UNICOMP
Certification:	CE, FDA
Model Number:	CX3000

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	can negotiate
Packaging Details:	Wooden Case, Waterproof, Anti-collision
Delivery Time:	30 days
Payment Terms:	T/T, L/C
Supply Ability:	30 sets per month

Detailed Product Description

Name:	X-ray Inspection Machine	Type:	Closed
Intensifier:	FDP	X-ray Leakage:	< 1uSv/h
X-ray Coverage:	48mm X 54mm	Power Consumption:	0.5kW
High Light:	desktop x ray machine x ray detection systems Electronics Benchtop X Ray Machine

BGA connectivity and analysis Benchtop X Ray Machine for PCB

Item	Definition	Specs
System Parameters	Size	750(L)x570(W)x890(H)mm
	Weight	300kg
	Power	220AC/50Hz
	Power Consumption	0.5kW
X-ray Tube	Type	Closed
	Max.Voltage	100kV
	Max.Power	200μA
	Spot Size	5μm
Detector	Intensifier	FPD
	X-ray Coverage	48mm x 54mm
	Resolution	208Lp/cm
Work Station	Max.Loading Size	200mm x 200mm
Work Station	Max.Inspection Area	200mm x 200mm
Oblique Angle Views		360° rotary fixture (Optional)
X-ray Leakage		<1μSv/h

X-ray Inspecting Features:

(1) Coverage of process defects up to 97%. Inspectible defects include: Empty solder, Bridge, Solder shortage, voids, components missing, and so on. In particular, the BGA, CSP and other solder joint devices can also be checked by X-Ray.

(2) Higher test coverage. It can check where the naked eye and the online test can not be checked. Such as PCBA was judged fault, suspected PCB inner trace break, X-ray can be quickly checked.

(3) The test preparation time is greatly reduced.

(4) It can observe other means of detection can not be reliably detected defects, such as: Empty soldering, air holes and poor molding and so on.

(5) Double layers board and multi-layer boards only one check (with layered function).

(6) Can provide relevant measurement information, used to evaluate the production process. Such as solder paste thickness, solder joints under the amount of solder.

OUR SERVICE

1.Your inquiry will be replied in 12 hours.

2.Original Manufacture to customers, with competitive price.

3.We provide one year warranty, free training and whole life technology support.

4.We can arrange the shipment by air, DHL,Fedex, UPS, and by Sea,etc for you, and will give you the tracking NO. after shipment.

5.Well-trained and Professional after-sales service team to support you.

6.Manual will package with machine . It will show you how to use machine step by step.

7.Items are only shipped after payment is received.

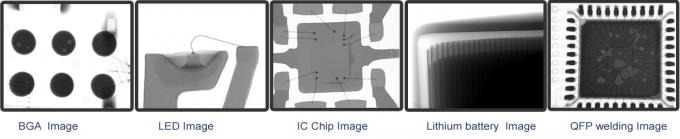

Inspection Images:
