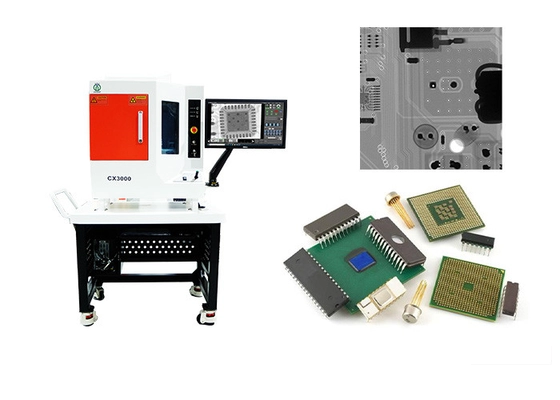

CX3000 Reel To Reel Electronics X Ray Machine 0.5kW For CSP LED Flip Chip

Danh mục:

Unicomp

Từ khóa:

xray3dsửamáyxraycôngnghiệp , sửamáyxraycôngnghiệp , máykiểmtraxray , kiểmđịnhantoànphóngxạ , máyxraycôngnghiệp , chothuêmáyxray , muabánmáyxraycũmới , máyxraycũmới , xray3d , xrf , xrfcũmới , sửamáyđoxrf

Vận chuyển giao hàng toàn quốc

Phương thức thanh toán linh hoạt

Gọi ngay 0974692294 để mua và đặt hàng nhanh chóng

Mô tả sản phẩm

Place of Origin:	China Guangdong
Brand Name:	Unicomp
Certification:	CE, FDA
Model Number:	CX3000

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	can negotiate
Packaging Details:	Wooden Case, Waterproof, Anti-collision
Delivery Time:	30 days
Payment Terms:	T/T, L/C
Supply Ability:	30 sets per month

Detailed Product Description

Name:	Electronics X Ray Machine	Application:	SMT, EMS,BGA, Electronics, CSP , LED , Flip Chip , Semiconductor
X-ray Coverage:	48mm X 54mm	X-ray Leakage:	< 1uSv/h
Weight:	300kg	Power Consumption:	0.5kW
High Light:	Flip Chip X Ray Machine CSP LED Electronics X Ray Machine Reel to Reel X Ray Machine

Brand New Generation of CX3000 with Reel to Reel Function Making It More Competitive

Specification Of Desktop X-Ray machine

Item	Definition	Specs
System Parameters	Size	750(L)x570(W)x890(H)mm
	Weight	300kg
	Power	220AC/50Hz
	Power Consumption	0.5kW
X-ray Tube	Type	Closed
	Max.Voltage	100kV
	Max.Power	200μA
	Spot Size	5μm
Detector	Intensifier	FPD
	X-ray Coverage	48mm x 54mm
	Resolution	208Lp/cm
Work Station	Max.Loading Size	200mm x 200mm
Work Station	Max.Inspection Area	200mm x 200mm
Oblique Angle Views		360° rotary fixture (Optional)
X-ray Leakage		<1μSv/h

Application of SMT X-Ray machine

BGA, CSP, LED, Flip Chip, Semiconductor, Battery Industry, Small Metal Casting, Electronic Connector Module, Aerospace Components, Photovoltaic Industry, Other Special Industries.

FEATURES of Desktop X-ray machine

1. 5μm 100kV X-ray tube;

2. Dynamic FPD with a high resolution of 1000×1124;

3. Equipped with 360° rotary fixture to eliminate PoP shadow;

4. The detection area is easily positioned by an external rocker;

5. Inspection & Analysis of soldering joint and materials inner structure;

6. High safety with seamless lead welding, interlock, and emergency button.

Description Of SMT X-Ray machine

X-ray inspection is a non-destructive testing method that examines many types of manufactured components through the penetrating power of X-rays to verify internal structures.

This X-ray is designed to provide high-resolution X-ray imaging for the electronics industry. This versatile system is effective for many applications in the PCB manufacturing process. This includes BGA, CSP, QFN, flip chip, COB and various SMT components. is a powerful support tool for process development, process monitoring, and refinement of rework operations. Backed by a powerful and easy-to-use software interface, x ray is able to meet the needs of small and large factories.

FAQ:

1. How about the package? Is it safe during the delivery?

All X-ray inspection machine is packed with standard wooden solid carton. It is safe when shipping.

2. Do you provide the Warranty? How about the after-sales service?

1-year warranty free for spare parts, Whole life technical support.

We have a professional after-sales team, if any questions, assistant videos are also provided in the after-sale service.

3. If we come to your factory if you will provide free training?

Yes, we warmly welcome you to visit our factory, we will arrange the free training for you.
