Mô tả sản phẩm

Place of Origin:	China
Brand Name:	UNICOMP
Certification:	CE, FDA
Model Number:	CX3000

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	can negotiate
Packaging Details:	Wooden Case, Waterproof, Anti-collision
Delivery Time:	30 days
Payment Terms:	T/T, L/C
Supply Ability:	30 sets per month

Detailed Product Description

Name:	X-ray Inspection Machine	Application:	SMT, EMS,BGA, Electronics, CSP , LED , Flip Chip , Semiconductor
Tube Voltage:	100KV	Industry:	Electronics Industry
Size:	750(L)x570(W)x890(H)mm	X-ray Leakage:	< 1uSv/h
Weight:	300kg	Power Consumption:	0.5kW
High Light:	x ray detection equipment x ray inspection equipment Electronics PCBA X Ray Detection Machine

CX3000 Benchtop Electronics PCBA Unicomp X-ray Detection Equipment

Features:

1. 5μm 100kV X-ray tube;

2. Dynamic FPD with high-resolution of 1000×1124;

3. Equipped with 360° rotary fixture to eliminate PoP shadow;

4. The detection area easily positioned by external rocker;

5. Inspection & Analysis of soldering joint and materials inner structure;

6. High safety with seamless lead welding, interlock and emergency button.

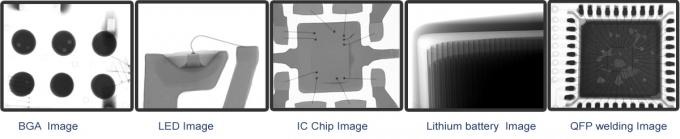

Applications:

BGA , CSP , LED , Flip Chip , Semiconductor,

Battery Industry , Small Metal Casting,

Electronic Connector Module,

Aerospace Components , Photovoltaic Industry,

Other Special Industries.

Item	Definition	Specs
System Parameters	Size	750(L)x570(W)x890(H)mm
	Weight	300kg
	Power	220AC/50Hz
	Power Consumption	0.5kW
X-ray Tube	Type	Closed
	Max.Voltage	100kV
	Max.Power	200μA
	Spot Size	5μm
Detector	Intensifier	FPD
	X-ray Coverage	48mm x 54mm
	Resolution	208Lp/cm
Work Station	Max.Loading Size	200mm x 200mm
Work Station	Max.Inspection Area	200mm x 200mm
Oblique Angle Views		360° rotary fixture (Optional)
X-ray Leakage		<1μSv/h
