Mô tả sản phẩm
Place of Origin: | China |
---|---|
Brand Name: | UNICOMP |
Certification: | CE, FDA |
Model Number: | LX2000 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1Set |
---|---|
Price: | can negotiate |
Packaging Details: | Wooden Case, Waterproof, Anti-collision |
Delivery Time: | 30 days |
Payment Terms: | T/T, L/C |
Supply Ability: | 300 sets per month |
Detailed Product Description
Color: | Grey | Name: | X-ray Inspection Machine |
---|---|---|---|
Application: | SMT, EMS,BGA, Electronics, CSP , LED , Flip Chip , Semiconductor | Tube Voltage: | 90KV |
Weight: | 1900kg | Power Consumption: | 3.5kW |
High Light: |
CSP X Ray Security Scanner130kV X Ray Security ScannerCeramic NDT X Ray Inspection Machine |
130kV clsoed tube X-ray system with convenient mapping process for ceramic NDT quality testing
Technical Parameters and Specifications
System Summary | |
Footprint | 2595(W)×1392(D)×1992(H)mm |
Machine Weight | 1900 kg (X-Ray) / 700kg (Conveyor) |
Power Supply | AC 110~220V, 50/60Hz |
Plywood Packing Size | 180(W)×170(D)×190(H)cm (X-Ray) 150(W)×105(D)×120(H)cm (Conveyor) |
Packing Weight | 2000kg (X-Ray) / 800kg (Conveyor) |
Power Consumption | 3.5 kW |
X-Ray Tube | |
Tube Type | Sealed |
Max. Power | 8W |
Voltage | 0~90kV (Adjustable) |
Focus Spot Size | 5μm |
Imaging System | |
Detector | Flat Panel Detector (FPD) |
Pixel Size | 85μm |
Effective Detection Area | 130*130mm |
Frame Rates | 20fps |
Pixel Matrix | 1536*1536 |
System Magnification | 200X |
Software | |
Auto-measuring | Auto Inspection and Analysing for Ok & NG Components |
CNC Mode | CNC Programmable Inspection, Easy Operation and User Friendly |
Rework | Support Rework Database Management System |
Data Connection | Support MES/ERP/SPC System |
Navigation | Convenient Target Point Positioning System |
Motion Control System | |
Movement Control | Joystick, Keypad, Mouse & Touch Panel (PLC) |
Adjustable Tunnel width | 80~350mm |
Max. Inspection Sample | 400*350mm / 10kg |
Min . Inspection Sample | 100*80mm |
Manipulator | Auto Inline System |
Industrial PC | |
Monitor | 22’’ FHD LCD Display |
System OS | Windows 10 64bit |
Hard disk | 1TB |
RAM | 8GB |
CPU model | Intel i7 Processor |
Other Features | |
Energy Saving | X-Ray Auto-off when it's out of work over than 5 minutes |
Safety Operation | Electromagnetic Interlock, Warning Light |
Authority Management | Password Magnagement |
X-Ray Safety | <1μSv/h (Meets All International Standards) |
* Specifications are subject to change without notice, All trademarks are the property of the system maker. |

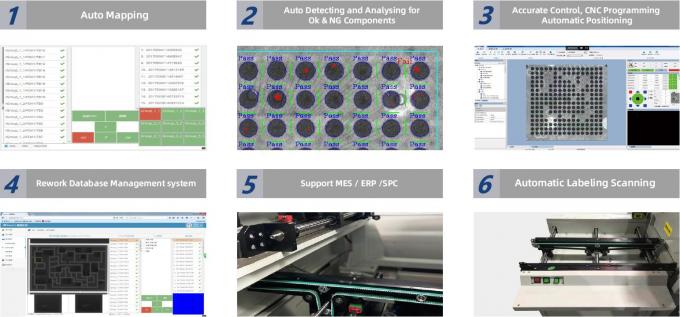

Functions and Features
Application
Widely applied for BGA , CSP , Flip Chip, LED , Fuse,Diode, PCB, Semiconductor, Battery Industry, Small
Metal Casting, Electronic Connector Module, Cables,Aerospace Components, Photovoltaic Industry, etc.

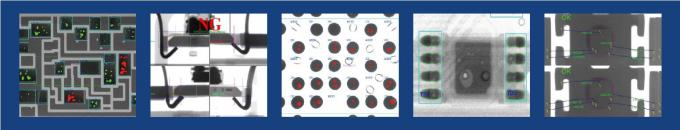

inspection images
