Mô tả sản phẩm

Feature

X-Ray 2D Inspection system

· Supports Multi-Language (Korean, English, Chinese)

· Lowest maintenance cost since every parts are locally developed and manufactured.

· Fast and clear image with easy to use UI and various filters.

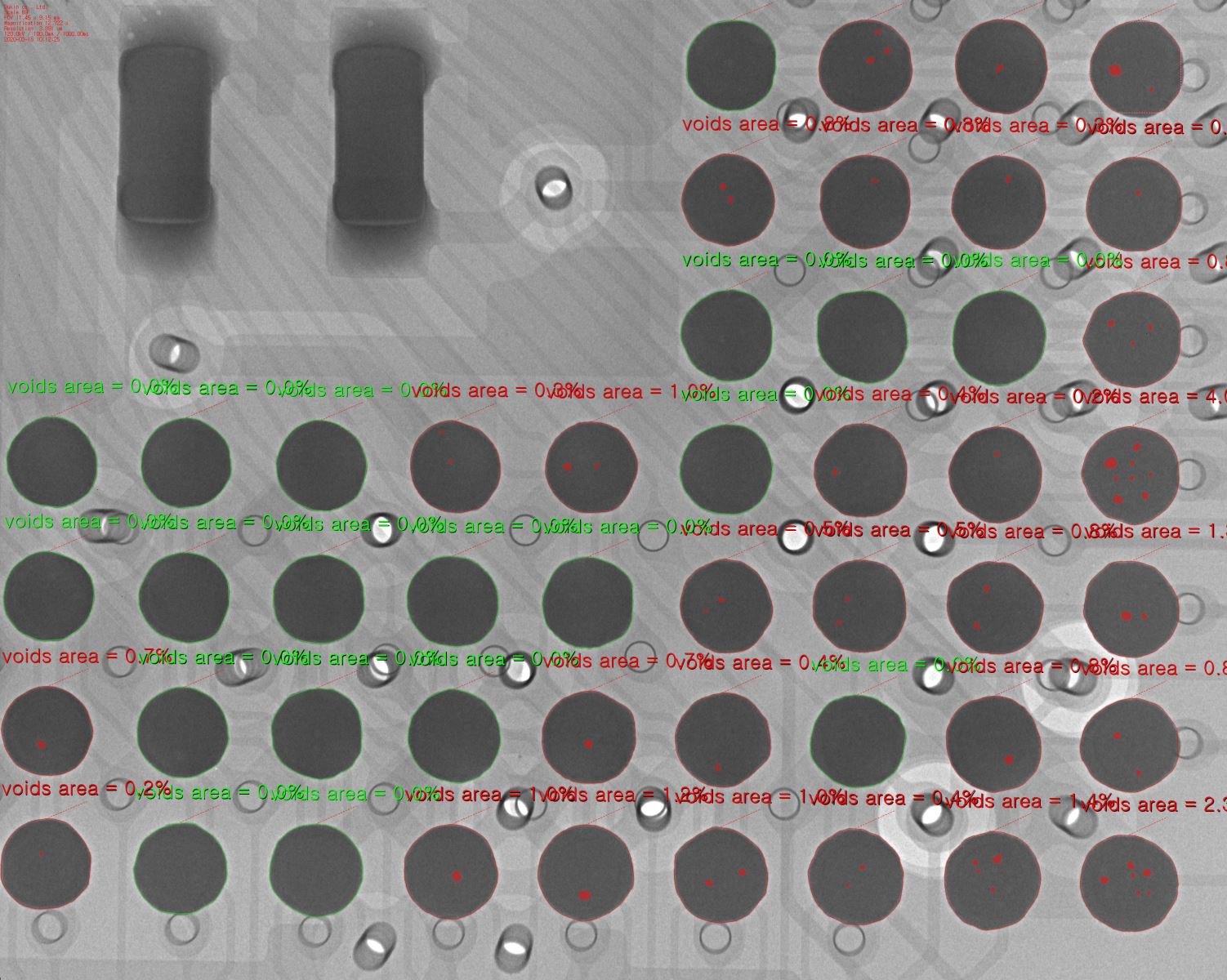

· Supports automatic defect(Pore/Crack) recognition (optional)

High performance oblique CT inspection system

· High quality and real-time CT scan (Max 3min/scan)

· Ultra precision CT table accuracy

Specifications

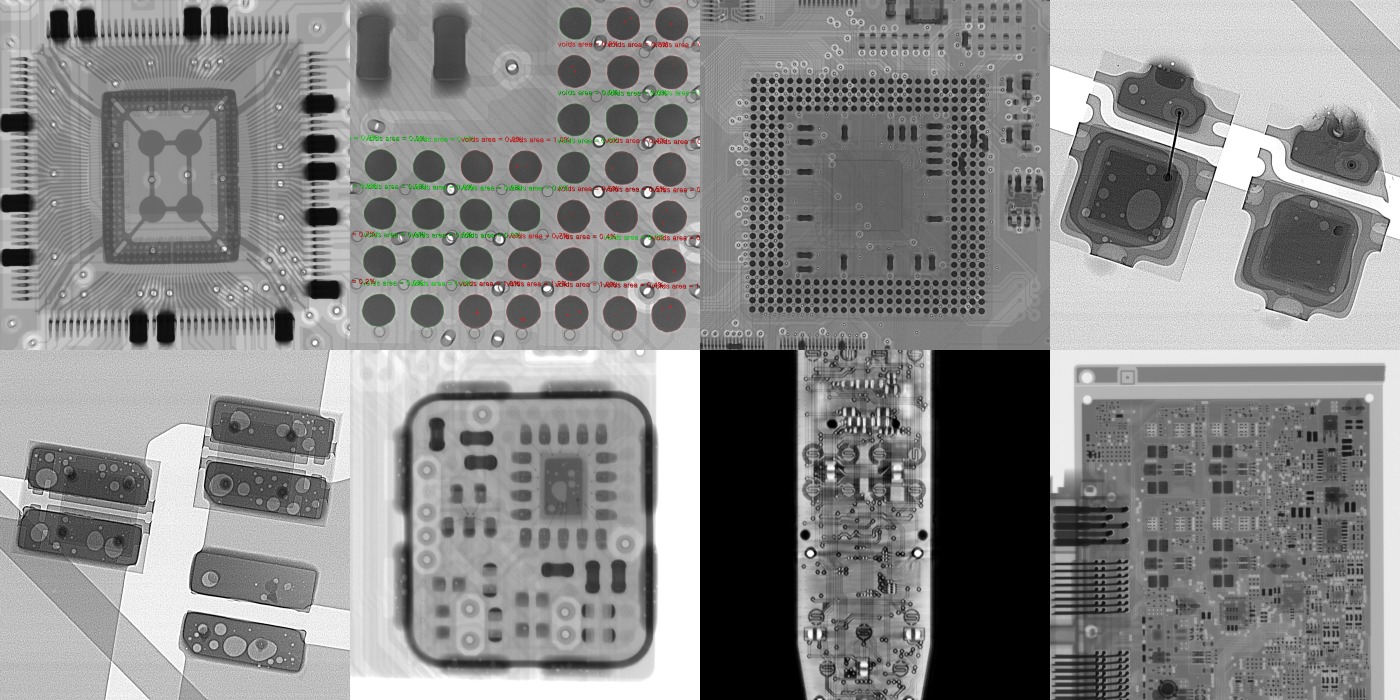

■ SMT, PKG, PCB

■ Battery & Mobile & Semiconductor

■ Cultural properties and relics

System Dimension

MODEL		Bright 90S, SCT	Bright 100S, SCT	Bright 130S, SCT	Bright 150S, SCT
X-Ray Tube	Voltage Range	90 kV	100 kV	130 kV	150 kV
	Current Range	200 uA	200 uA	300 uA	500 uA
	Max. Output	8 W	20 W	39 W	75 W
	Focal Spot Size	5μm			50 μm
Flat Panel Detector	Flat Panel Detector (Acive Area)	116 mm X 146 mm
	Pixel Size	49.5 μm
	Resolution	10 μm
Manipulator	Loading Table Size	400 mm X 400 mm
	XYZ Stroke	400 mm X 400 mm X 200 mm
	Table Rotation	360 °
	Max. Sample Weight	Max 5 kg
	Tilt	40 °
	Dimension (W X D X H)	2000 mm X 1670 mm X 1800 mm (+Monitor 2700 mm X 1950 mm X 1950 mm)
	Equipment Weight	2000 kg
Environmental Conditions	Power Supply	220 VAC Single phase 50/60Hz
	Operation Temperature	0 °C ~ 40 °C
	Humidity	0 % to 90 %
	X-Ray Leakage Dose	< 1μSv/Hour

Available software

X-Ray Inspection Software

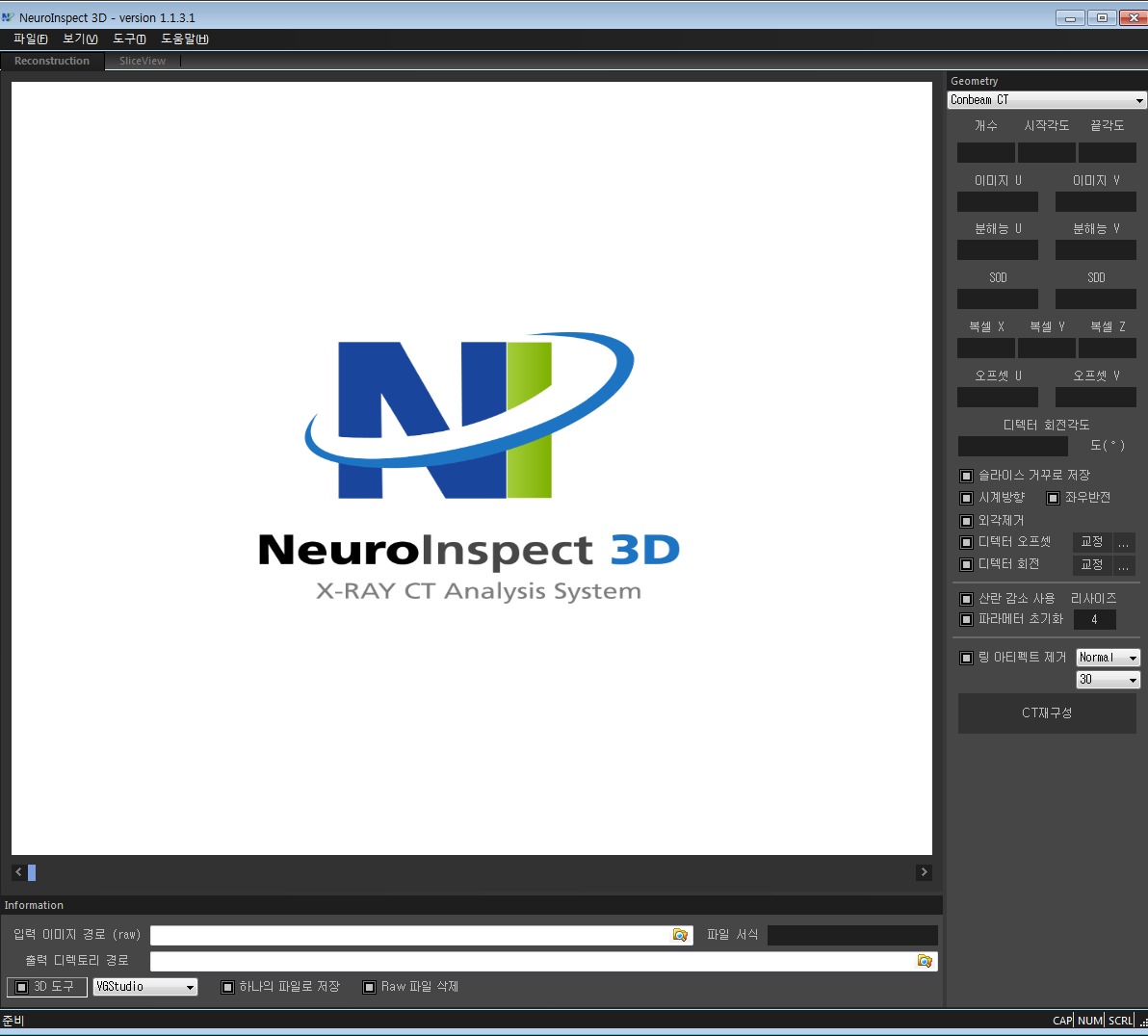

NeuroXray is an industrial X-ray or inline 2D analysis and CT imaging software.

ADR Solution NAXI

NeuroAXI is a variety of image correction technologies Defects such as bubbles/foreign substances/cracks that are difficult to judge It is a software that automatically detects.
