BGA QFN CSP X Ray Equipment LX2000 CNC Programmable For FPC SMT Soldering

Danh mục:

Unicomp

Từ khóa:

xray3dsửamáyxraycôngnghiệp , sửamáyxraycôngnghiệp , máykiểmtraxray , kiểmđịnhantoànphóngxạ , máyxraycôngnghiệp , chothuêmáyxray , muabánmáyxraycũmới , máyxraycũmới , xray3d , xrf , xrfcũmới , sửamáyđoxrf

Vận chuyển giao hàng toàn quốc

Phương thức thanh toán linh hoạt

Gọi ngay 0974692294 để mua và đặt hàng nhanh chóng

Mô tả sản phẩm

Place of Origin:	China
Brand Name:	UNICOMP
Certification:	CE, FDA
Model Number:	LX2000

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	can negotiate
Packaging Details:	Wooden Case, Waterproof, Anti-collision
Delivery Time:	30 days
Payment Terms:	T/T, L/C
Supply Ability:	300 sets per month

Detailed Product Description

Color:	Grey	Name:	X-ray Inspection Machine
Application:	SMT, EMS,BGA, Electronics, CSP , LED , Flip Chip , Semiconductor	Tube Voltage:	90KV
Weight:	1900kg	Power Consumption:	3.5kW
High Light:	FPC SMT X Ray Equipment BGA QFN X Ray Equipment CNC Programmable X Ray Inspection Machine

LX2000 inline x-ray equipment with CNC programmable inspection for FPC SMT soldering process of BGA , QFN, CSP parts

Technical Parameters and Specifications

System Summary
Footprint	2595(W)×1392(D)×1992(H)mm
Machine Weight	1900 kg (X-Ray) / 700kg (Conveyor)
Power Supply	AC 110~220V, 50/60Hz
Plywood Packing Size	180(W)×170(D)×190(H)cm (X-Ray) 150(W)×105(D)×120(H)cm (Conveyor)
Packing Weight	2000kg (X-Ray) / 800kg (Conveyor)
Power Consumption	3.5 kW
X-Ray Tube
Tube Type	Sealed
Max. Power	8W
Voltage	0~90kV (Adjustable)
Focus Spot Size	5μm
Imaging System
Detector	Flat Panel Detector (FPD)
Pixel Size	85μm
Effective Detection Area	130*130mm
Frame Rates	20fps
Pixel Matrix	1536*1536
System Magnification	200X
Software
Auto-measuring	Auto Inspection and Analysing for Ok & NG Components
CNC Mode	CNC Programmable Inspection, Easy Operation and User Friendly
Rework	Support Rework Database Management System
Data Connection	Support MES/ERP/SPC System
Navigation	Convenient Target Point Positioning System
Motion Control System
Movement Control	Joystick, Keypad, Mouse & Touch Panel (PLC)
Adjustable Tunnel width	80~350mm
Max. Inspection Sample	400*350mm / 10kg
Min . Inspection Sample	100*80mm
Manipulator	Auto Inline System
Industrial PC
Monitor	22’’ FHD LCD Display
System OS	Windows 10 64bit
Hard disk	1TB
RAM	8GB
CPU model	Intel i7 Processor
Other Features
Energy Saving	X-Ray Auto-off when it's out of work over than 5 minutes
Safety Operation	Electromagnetic Interlock, Warning Light
Authority Management	Password Magnagement
X-Ray Safety	<1μSv/h (Meets All International Standards)
* Specifications are subject to change without notice, All trademarks are the property of the system maker.

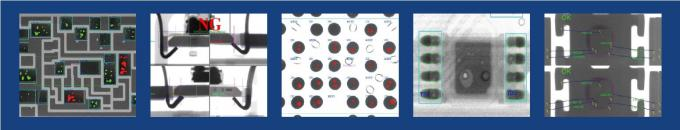

Application

Widely applied for BGA , CSP , Flip Chip, LED , Fuse,Diode, PCB, Semiconductor, Battery Industry, Small
Metal Casting, Electronic Connector Module, Cables,Aerospace Components, Photovoltaic Industry, etc.

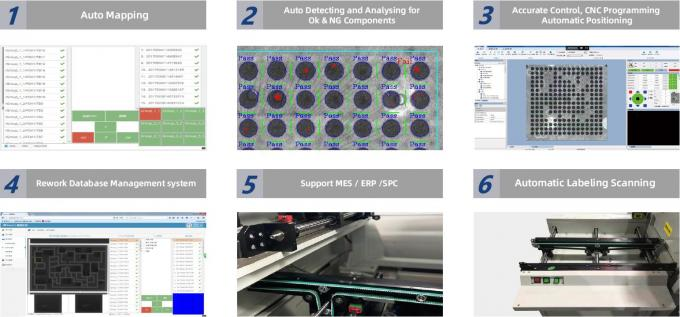

Functions and Features
