Mô tả sản phẩm
| Place of Origin: | China |
|---|---|
| Brand Name: | Unicomp |
| Certification: | CE, FDA |
| Model Number: | UNF6040 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Delivery Time: | 30 |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets per month |
Detailed Product Description
| Max Voltage: | 40-120kV | Image System: | Linear Detector Array |
|---|---|---|---|
| Tunnel Size: | 600x400mm | Inspection Speed: | 10-50m/ Min |
| High Light: |
120KV Unicomp X RayArray Image Unicomp X Ray50m/ Min X Ray Machine |
||
Unicomp UNF6040 X-ray inspection system is designed for the automatic inspection of online Food, Pet Food and Pharmaceutical. The innovative “no curtain” design combined with hygienic construction makes Unicomp UNF6041 for easy and efficient cleaning where daily sanitation of equipment is mandatory.
Specifiction:
| Model | UNF6040 |
| Max Voltage | 40-120kV |
| Max Current | 0.2-7.5mA |
| Inspection Speed (m/min) | 10-50 |
| Inspection Accuracy(mm) | Stainless steel ball ø0.5,Stainless steel wire 0.2x1.5, Glass2.0,Plastic 1.5 |
| Image system | Linear detector array |
| Belt | Food grade belt, length can be customized |
| Tunnel Size(mm) | 600x400 |
| Max.Loading Weight | 10kg |
| Monitor | 19'' |
| Dimension(WxDxH,mm) | 1600x790x1800 |
| Weight | 500kg |
| Safety | <1μSv/h (5cm away from the housing) |
| Operation | 1-2person (Can be fully automated with automatic line docking) |
| Equipment material | 304Stainless steel |
| Software | Unicomp Software |
| Applications | Bulk, metal (or non-metal) packaging and canning |
| Radiation Safety Statement :All the equipments produced by Unicomp Technology meet the relevant requirements of the national standard GB18871-2002, which is better than the industry average. | |
| Work environment : Temperature -5-40°C , Humidity 10-90% (No condensation) | |

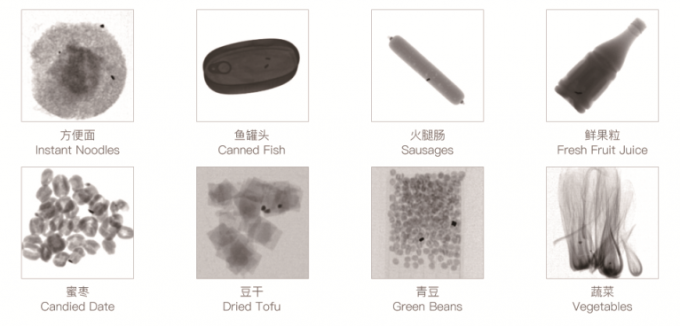

Inspection image
Packaging & Shipping
Strong Plywood Case special designed for export packing to avoid any broken during the shipping. Suggest to ship by sea.
