100kV 1uSv/h X Ray Detection Machine 1.0KW For LED Soldering

Danh mục:

Unicomp

Từ khóa:

xray3dsửamáyxraycôngnghiệp , sửamáyxraycôngnghiệp , máykiểmtraxray , kiểmđịnhantoànphóngxạ , máyxraycôngnghiệp , chothuêmáyxray , muabánmáyxraycũmới , máyxraycũmới , xray3d , xrf , xrfcũmới , sửamáyđoxrf

Vận chuyển giao hàng toàn quốc

Phương thức thanh toán linh hoạt

Gọi ngay 0974692294 để mua và đặt hàng nhanh chóng

Mô tả sản phẩm

Place of Origin:	China
Brand Name:	UNICOMP
Certification:	CE, FDA
Model Number:	AX8200L

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	can negotiate
Packaging Details:	Wooden Case, Waterproof, Anti-collision
Delivery Time:	30 days
Payment Terms:	T/T, L/C
Supply Ability:	300 sets per month

Detailed Product Description

Tube Voltage:	100kV	Industry:	Electronics Industry
Size:	1950mm(L) X 1350mm(W) X 1750mm(H)mm	X-ray Leakage:	< 1uSv/h
Weight:	3000kg	Power Consumption:	1kW
High Light:	1uSv/H X Ray Detection Machine , X Ray Detection Machine 1.0KW , 100kV X Ray Scanner

Application

It's mainly used in light strip backlight detection, LED bubble detection, TV backlight LED strip
detection; It can also be applied to BGA, CSP,
Flip ceramic element, chip electronic inspection, products.Aerospace connector semiconductor, module components, package testing,
photovoltaic industry, battery industry, etc.

Features

Sµm closed X-Ray tube, HD digital flat panel
X-Ray tube & Detector motion up and down, friendly user interface and fast target point navigation system
Max. loading area 1300 x 650mm, Max. inspection area 1300 x 700mm ;600x Magnification
Editable inspection program to realize CNC automatic inspection
Suitable for high-volume testing with high repeat accuracy

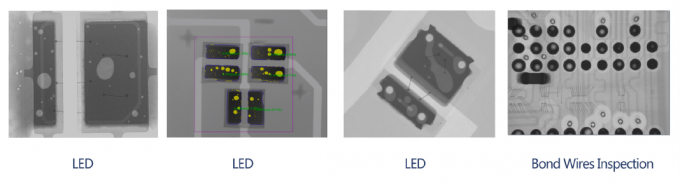

X-ray Images

Specifications

Item	Definition	Specs
Machine Status	Size	1950mm(L) x 1350mm(W) x 1750mm(H)mm
	Weight	3000kg
	Power	220AC/50Hz
	Power Consumption	1.0KW
X-ray Tube	Type	Closed
	Max.voltage	90kV (Optional 100kV, 130kV)
	Max.Power	8W
	Spot Size	5μm
X-ray System	Intensifier	FPD
	Monitor	24''
	Magnification	600X
Focus Region	Max.laoding Size	1300×700mm
Focus Region	Max.Inspection Area	1300×650mm
X-ray Leakage	<1μSv/h
