Unicomp AX9100 X Ray Machine SMT PCBA BGA LED QFN Soldering Void Measurement

Danh mục:

Unicomp

Từ khóa:

xray3dsửamáyxraycôngnghiệp , sửamáyxraycôngnghiệp , máykiểmtraxray , kiểmđịnhantoànphóngxạ , máyxraycôngnghiệp , chothuêmáyxray , muabánmáyxraycũmới , máyxraycũmới , xray3d , xrf , xrfcũmới , sửamáyđoxrf

Vận chuyển giao hàng toàn quốc

Phương thức thanh toán linh hoạt

Gọi ngay 0974692294 để mua và đặt hàng nhanh chóng

Mô tả sản phẩm

Place of Origin:	China
Brand Name:	UNICOMP
Certification:	CE, FDA
Model Number:	AX9100

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	can negotiate
Packaging Details:	Wooden Case, Waterproof, Anti-collision
Delivery Time:	30 days
Payment Terms:	T/T, L/C
Supply Ability:	300 sets per month

Detailed Product Description

Name:	X-ray Inspection Machine	Application:	SMT, EMS,BGA, Electronics, CSP , LED , Flip Chip , Semiconductor
Tube Voltage:	130KV	Industry:	Electronics Industry
Size:	1350(L)x1250(W)x1700(H)mm	X-ray Leakage:	< 1uSv/h
Weight:	1900kg	Power Consumption:	1.6kW
High Light:	Unicomp AX9100 X Ray Machine LED QFN X Ray Machine Soldering Void X Ray Equipment

SMT PCBA BGA LED QFN Soldering void measurement by Unicomp AX9100 X Ray Machine

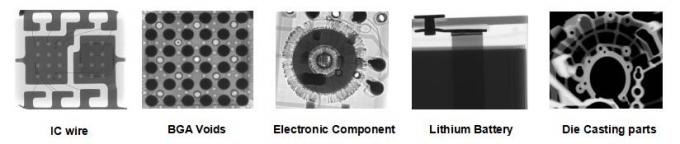

Applications:
● SMT, BGA, CSP, Flip Chip, LED Detection.
● Semiconductor, Packaging components, Battery Industry.
● Electronic components, Auto parts, Photovoltaic Industry.
● Aluminum Die-casting, Moulding Plastic.
● Ceramics, Other Special Industries.

Features:
● 90-130KV 7μm X-Ray tube.
● High speed & Millions pixels high resolution FPD.
● 1000X magnification, high-definition real-time image.

● One-button operation with 2.5D image display.
● Off-line programming function, navigation mode detection.
● 7 axis linkage, 70 degree tilt detection.

Item	Definition	Specs
System Parameters	Size	1350(L)x1250(W)x1700(H)mm
	Weight	1900kg
	Power	220AC/50Hz
	Power Consumption	1.6kW
X-ray Tube	Type	Closed
	Max.Voltage	130kV
	Max.Power	40W
	Spot Size	7μm
X-ray System	Intensifier	FPD
	Monitor	22 ‘’LCD
	System Magnification	1600 X
Detection Region	Max.Loading Size	Φ570mm
Detection Region	Max.Inspection Area	450mm x 450mm
X-ray Leakage		<1μSv/h
