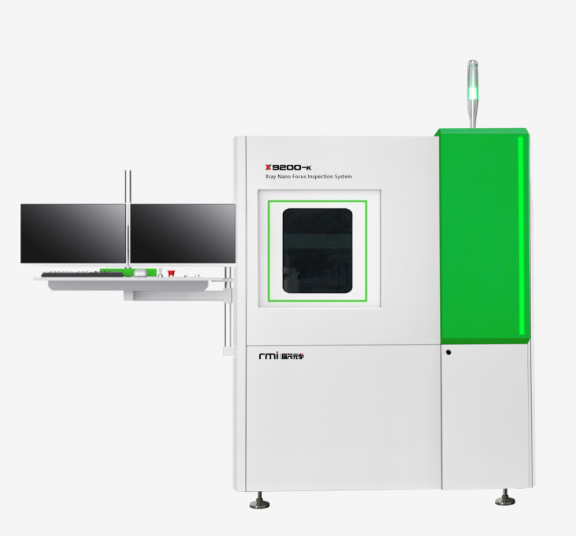

Open Tube 0.6μm X-9200k Inspection System

Danh mục:

rmi

Vận chuyển giao hàng toàn quốc

Phương thức thanh toán linh hoạt

Gọi ngay 0974692294 để mua và đặt hàng nhanh chóng

Mô tả sản phẩm

X-9200K electronic semiconductor inspection equipment, the minimum inspection accuracy of 0.6um, can be used to detect integrated circuit chip semiconductor, such as BGA, IGBT, inverted chip and PCBA component welding, LED bonding, IC packaging with high precision testing.

ube	Tube type	Open tube
	Spatial resolution	0.6um-2um
	Tube voltage	160kv
	Tube current	1000μA
FPD	Image taking type	Flat-panel Digital
	Imaging precision	85um
	Flat panel photosensitive size	130*130mm
	A/D convert quantified density value	16bit (65536)
	Dpi	1536*1536px
	Frame frequency	20（FPS)
System	System magnification	2100x（without the 360° rotary stage）
	Operating system	10000x（without the 360° rotary stage）
	Power supply	WINDOWS 10
	Power	AC380V Three-phase 50-60HZ 1800W
	Radiation safety test	1800W
	Tube type	<1 uSV/H
Structure	Detector rotation angle	±70°
	Stage size	600*605mm
	Sensing range	430*430mm
	Stage rotation angle	360°
	Load-bearing	≤20kg
	Machine size	151017701850mm(LWH)
	Machine size (Including monitor)	181024202400mm(LWH)
	Machine weight	2200kg
	Stage movement	Automatic / manual
Safety	CE Certificate	Yes: STE23113101S
	State immunity	Yes
	Radiation Safety Permit	Yes: Guangdong Environmental Radiation Safety Permit [B0640]
