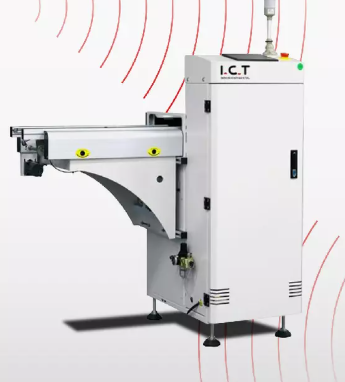

MLD-M | Mini Size Loader and Unloader

The Mini Size SMT Loader is a compact, reliable solution designed to automate the process of loading PCBs into magazines in an SMT production line. Engineered with a strong and stable structure, it features top and bottom pneumatic clamps to secure magazine racks, a touchscreen and PLC control for easy operation, and wear-resistant components to ensure long service life. With its minimal footprint and compatibility with SMEMA, this loader integrates seamlessly into existing assembly lines, optimizing production efficiency.

PCB Mini Size Loader Key Features：

1. Robust Construction

   • Sturdy frame design that ensures high stability and minimal vibration.

2. Touchscreen & PLC Control

   • Intuitive interface for quick setup and monitoring, reducing operator errors and downtime.

3. Top & Bottom Pneumatic Clamps

   • Securely holds the magazine racks in place, preventing PCB misalignment or damage.

4. Enhanced PCB Protection

   • Special glass circuit design helps prevent PCB breakage during loading.

5. Flexible PCB Orientation

   • Easily configurable to transport PCBs from left to right or right to left to match your production flow.

6. Wear-Resistant Components

   • High-quality cables and mechanical parts designed for durability and extended service life.

7. SMEMA Compatible

   • Standard SMEMA interface ensures easy integration with other SMT equipment in your production line.
