Mô tả sản phẩm

Place of Origin:	China
Brand Name:	UNICOMP
Certification:	CE, FDA
Model Number:	AX8200MAX

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	can negotiate
Packaging Details:	Wooden Case, Waterproof, Anti-collision
Delivery Time:	30 days
Payment Terms:	T/T, L/C
Supply Ability:	300 sets per month

Detailed Product Description

Tube Voltage:	0~90kV (Adjustable)	Tube Type:	Sealed
Focus Spot Size:	5μm	Detector:	Flat Panel Detector (FPD)
Packing Weight:	1500 Kg	Power Supply:	AC 110~220V, 50/60Hz
High Light:	LCD Monitor Capacitor X Ray Equipment High Precision X Ray Scanner Machine Electronic X Ray Scanner Machine

High Precision X Ray Machine 24" LCD Monitor Capacitor Inspection Application

Function & Features

Large Size Inspection Table Laser Locator for Precise Location
24’’ FHD Interactive Touch LCD Display
Fingerprint Access Management System
Real-time Monitoring of Radiation
Accurate Control, CNC ProgrammingAutomatic Positioning
FPD 60° Tilting Inspection

Application Fields

Widely applied for BGA , CSP , Flip Chip, LED , Fuse,Diode, PCB, Semiconductor, Battery Industry, Small
Metal Casting, Electronic Connector Module, Cables,Aerospace Components, Photovoltaic Industry, etc.

System Summary

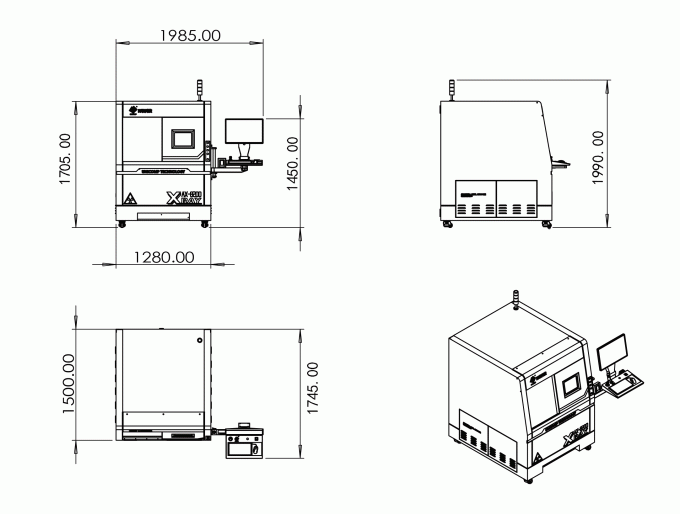

Footprint	1280(W)×1500(D)×1705(H)mm
Machine Weight	1400 kg
Power Supply	AC 110~220V, 50/60Hz
Plywood Packing Size	175(W)×155(D)×200(H)cm
Packing Weight	1500 kg
Power Consumption	1.0 kW
X-Ray Tube
Tube Type	Sealed
Max. Power	8W
Voltage	0~90kV (Adjustable)
Focus Spot Size	5μm
Imaging System
Detector	Flat Panel Detector (FPD)
Pixel Size	85μm
Effective Detection Area	130*130mm
Frame Rates	20fps
Pixel Matrix	1536*1536
System Magnification	600X
Software
Auto-measuring	BGA Soldering Voids Auto-measuring and Support Data/Graphic Output
Multiple Measuring Tools	Support Measuring Distance, Angle, Diameter, Polygon, PTH filling rate, etc.
CNC Mode	CNC Programmable Inspection, Easy Operation and User Friendly
Real-time Display	Real-time Displaying the Working Data of Voltage, Current, Angle, Date, etc
Navigation	Convenient Target Point Positioning System
Motion Control System
Movement Control	Joystick, Keypad, Mouse &Touch Panel
Max. Loading Area/Weight	610*610mm / 10kg
Max. Inspection Area	550*550mm
Oblique Views	Max. 60°
Manipulator	6-axis with X / Y / Z1 / Z2 / T1 / T2
Industrial PC
Monitor	24’’ FHD Interactive Touch LCD Display
System OS	Windows 10 64bit
Hard disk	1TB
RAM	8GB
CPU model	Intel i7 Processor
Other Features
Door Open	Electric Sliding
X-Ray Safety	<1μSv/h (Meets All International Standards)
Authority Management	Fingerprint Access Magnagement System, and Support Password Accessing.
Safety Operation	Electromagnetic Interlock, Warning Light and Real-time Radioation Leakage Monitor
* Specifications are subject to change without notice, All trademarks are the property of the system maker.
