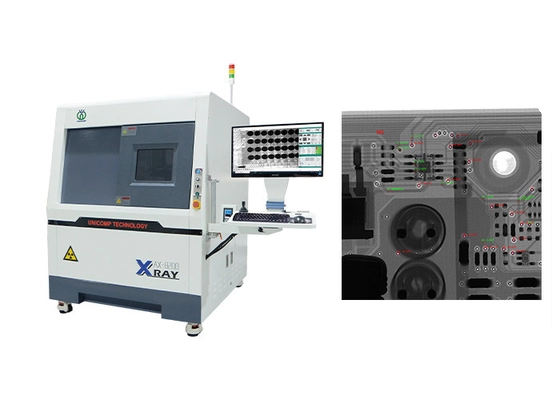

Inline X-Ray Detection Machine Checking Semiconductor Electronic Components

Danh mục:

Unicomp

Từ khóa:

xray3dsửamáyxraycôngnghiệp , sửamáyxraycôngnghiệp , máykiểmtraxray , kiểmđịnhantoànphóngxạ , máyxraycôngnghiệp , chothuêmáyxray , muabánmáyxraycũmới , máyxraycũmới , xray3d , xrf , xrfcũmới , sửamáyđoxrf

Vận chuyển giao hàng toàn quốc

Phương thức thanh toán linh hoạt

Gọi ngay 0974692294 để mua và đặt hàng nhanh chóng

Mô tả sản phẩm

Place of Origin:	China
Brand Name:	UNICOMP
Certification:	CE, FDA
Model Number:	LX2000

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	can negotiate
Packaging Details:	Wooden Case, Waterproof, Anti-collision
Delivery Time:	30 days
Payment Terms:	T/T, L/C
Supply Ability:	300 sets per month

Detailed Product Description

Color:	Grey	Industry:	Electronics Industry
Size:	1600(L)x1450(W)x1600(H)mm	X-ray Leakage:	< 1uSv/h
Weight:	2000kg	Power Consumption:	2kW
High Light:	x ray equipment electronic inspection equipment Semiconductor X-Ray Detection Machine

Inline X-ray Detection Equipment Checking Semiconductor Electronic Components

Unicomp Technology has a dedicated pool of local and foreign senior professional R & D engineers with extensive experience in high level science and technology. The company is undertaking major national special project (namely “02” project and “863” project) and X-ray detecting equipment R&D in new fields of application. It also works closely with The Chinese academy of sciences, Tsinghua University etc. to advance the core technology of X-ray imaging. Presently Unicomp has submit a total of 256 patents with 199authorized. Unicomp has obtained numerous management system certification, such as ISO 9001 quality management system, ISO 14001 environmental management system, OHSAS18001 occupational health & safety management system, as well as ISO27001 information safety management system.

The LX-2000 is a versatile OnLine X-ray Machine designed for automated and semi-automated analysis. In addition to the OnLine capability, the LX-2000 can also be used in a Manual mode as a process monitoring/engineering workstation.

Item	Definition	Specs
System Parameters	Size	1385(L)x1400(W)x1620(H)mm
	Weight	2000kg
	Power	220AC/50Hz
	Power Consumption	3.5kW
X-ray Tube	Type	Closed
	Max.Voltage	130kV
	Max.Power	40W
	Spot Size	3μm
X-ray System	Intensifier	FPD
	Monitor	22 ‘’LCD
	System Magnification	200 X
Detection Region	Orbit Adjusting Range	80-350mm
X-ray Leakage		<1μSv/h
Control Mode		CNC Motion Mode
