In Linex Ray Baggage Inspection System CNC Motion Control Mode For LED Lighting

Danh mục:

Unicomp

Từ khóa:

xray3dsửamáyxraycôngnghiệp , sửamáyxraycôngnghiệp , máykiểmtraxray , kiểmđịnhantoànphóngxạ , máyxraycôngnghiệp , chothuêmáyxray , muabánmáyxraycũmới , máyxraycũmới , xray3d , xrf , xrfcũmới , sửamáyđoxrf

Vận chuyển giao hàng toàn quốc

Phương thức thanh toán linh hoạt

Gọi ngay 0974692294 để mua và đặt hàng nhanh chóng

Mô tả sản phẩm

Place of Origin:	China
Brand Name:	UNICOMP
Certification:	CE, FDA
Model Number:	LX2000

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	can negotiate
Packaging Details:	Wooden Case, Waterproof, Anti-collision
Delivery Time:	30 days
Payment Terms:	T/T, L/C
Supply Ability:	300 sets per month

Detailed Product Description

Color:	Grey	Name:	X-ray Inspection Machine

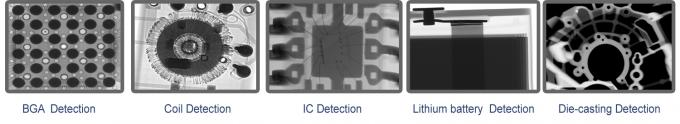

Application:	SMT, EMS,BGA, Electronics, CSP , LED , Flip Chip , Semiconductor	Tube Voltage:	130KV
Weight:	2000kg	Power Consumption:	2kW
High Light:	In Linex Ray Baggage Inspection System 130KV X Ray Baggage Inspection System Cnc Control X Ray Inspection Machine

In-line X-Ray Inspection Machine for LED Lighting

Unicomp Technology upholds its Integrity, Deploitation and Excellence in the business, is committed to meeting the highest level of International Standards and promises to be a responsive partner with all of our customers. This philosophy has enabled Unicomp to generated a strong Global customer base of many International Renowned companies including Flextronics, Foxconn, Samsung, Philips, GM, Bosch, Emerson, Delphi,ABB, BYD, ZTE, Panasonic, Sony, Boston Power, BAK, Sunwoda, Guoxuan, Fenghua, Coslight, ManYue, ,ITM, SISP, Taikai, Heli, Exploitpr, Qiya,Timeng,YUNDA Express,UC Express and YTO Express just to name a few.

The LX-2000 is a versatile OnLine X-ray Machine designed for automated and semi-automated analysis. In addition to the OnLine capability, the LX-2000 can also be used in a Manual mode as a process monitoring/engineering workstation.

Item	Definition	Specs
System Parameters	Size	1385(L)x1400(W)x1620(H)mm
	Weight	2000kg
	Power	220AC/50Hz
	Power Consumption	3.5kW
X-ray Tube	Type	Closed
	Max.Voltage	130kV
	Max.Power	40W
	Spot Size	3μm
X-ray System	Intensifier	FPD
	Monitor	22 ‘’LCD
	System Magnification	200 X
Detection Region	Orbit Adjusting Range	80-350mm
X-ray Leakage		<1μSv/h
Control Mode		CNC Motion Mode
