High Precision X Ray Baggage Scanner 0.22m /S For Airport Security Inspection

Danh mục:

Unicomp

Từ khóa:

xray3dsửamáyxraycôngnghiệp , sửamáyxraycôngnghiệp , máykiểmtraxray , kiểmđịnhantoànphóngxạ , máyxraycôngnghiệp , chothuêmáyxray , muabánmáyxraycũmới , máyxraycũmới , xray3d , xrf , xrfcũmới , sửamáyđoxrf

Vận chuyển giao hàng toàn quốc

Phương thức thanh toán linh hoạt

Gọi ngay 0974692294 để mua và đặt hàng nhanh chóng

Mô tả sản phẩm

Place of Origin:	China
Brand Name:	Unicomp
Certification:	CE, FDA
Model Number:	UNX6040E

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negociation
Packaging Details:	Wooden Case, Waterproof, Anti-collision
Delivery Time:	30 days after order confirmation
Supply Ability:	300 Sets Per Month

Detailed Product Description

Dimensions:	1260mm(L) × 910mm(W) × 1240mm(H)	Tunnel Size:	600mm(W) × 400mm(H)
Weight:	390kg	Conveyor Height:	610±10mm
Inspection Speed:	0.22m/s	Max.Load Weight:	100Kg(Even Distribution)
High Light:	High Precision X Ray Baggage Scanner X Ray Baggage Scanner 0.22m /S Unicomp SMT X Ray Machine

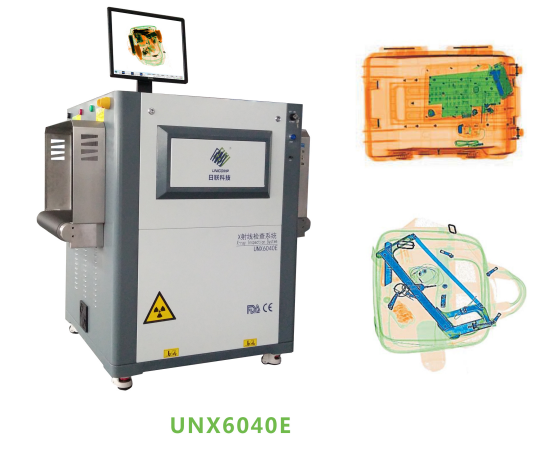

UNX6040 High Precision X Ray Baggage Scanner Airport Luggage X-ray Scanner For Security Inspection

High Precision X Ray Baggage Scanner 0.22m /S For Airport Security Inspection 0

Application:Law Enforcement,Government Bodies,School,Shopping Mall, Exhibition Hall, Churches, Museum, Office Building, Campus, Hotels, Factories, Sports Center, etc.

Product Features:

Inspection Speed of 0.22m/s
Steel penetration of 34mm
Max. Inspection object size of 600*400mm
Remote technical support
In compliance with international safety standards, X-Ray dose rate is close to naturally occurring radiation
Accurate material recognition: Orange for organic, blue for inorganic, green for metal and compound
Affliated explosives and narcotics detection enables auto-alert upon the presence of explosives and narcotics

Technical Specifications:

System Parameters
Dimensions	1260mm(L)×910mm(W)×1240mm(H)
Tunnel Size	600mm(W)×400mm(H)
Weight	390kg
Conveyor Height	610±10mm
Inspection Speed	0.22m/s
Max.Load Weight	100Kg(Even distribution)
Resolution	40AWG ( φ= 0.0787 mm metal wire )
Penetration	36mm (Typical), 34mm (Standard)
Radiation Safety	Meets film safety ISO 1600
X-ray Dose Rate	<0.42μGy/h (5cm away from the housing)
X-ray Generator
Anode Voltage	140Kv-160kV( Adjustable)
Cooling Cycle	Oil Cooling 100%
Single Inspection Dose	<1.2μGy
Imaging System
X-ray Detector	Photodiode
Gray Level	4096
Monitor	17’’
Image Processing System
Image Enhancement	Black and white Inverse High-energy penetration Low-energy penetration Super-enhancement Elimination of organic or inorganic substances Variable absorption rate Pseudo-color *Arbitrary selection ( user selected ROI zoom ) ( 64X image magnification/no loss of resolution )
