Mô tả sản phẩm

Place of Origin:	China
Brand Name:	UNICOMP
Certification:	CE
Model Number:	UNC450

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	can negotiate
Packaging Details:	Wooden Case, Waterproof, Anti-collision
Delivery Time:	30 days
Payment Terms:	T/T, L/C
Supply Ability:	10 sets per month

Detailed Product Description

Name:	X-ray Inspection Machine	Application:	Aluminum Casting, Iron Casting, Auto Parts, Wheels, Metal Products, Refractory Materials
Tube Voltage:	450KV	X-ray Leakage:	< 1uSv/h
Weight:	18.65T	Power Consumption:	9kW
High Light:	Ductile Iron NDT X Ray Equipment Low Breakdown NDT X Ray Equipment Aluminum Casting Electronics X Ray Machine

UNC450 Ductile Iron NDT Real Time Imaging Unicomp X-ray Inspection Machine

Features:
● High reliable and long life,low breakdown;
● High definition and resolution FPD;
● C-arm fixture design enabling five-axis motion detection(optional automatic lift and descend);
● Multi-functional workstation,360°rotation and shift;
● User friendly software design for easy interfacing can facilitate,customized software ;
● High penetration,Voltage up to 450KV,Maximum penetration thickness up to 80mm for "Fe";
● Detection area:Φ500*800mm;
● Loading weight:100KG.

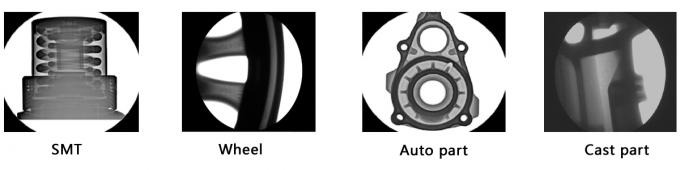

Applications:
It is widely applied to inspect all kind of casting,NDT for air bubble,porosity and unwanted foreign.The equipment is applicable objects for NDT of cylinder welding defects and body,sidewall,lap,Crown steel cord and steel belt of tyre slag inclusion,crack,loosen and other flaws in hubs,pressure vessel,refractory material,bullet,boilr welded pipe and screwy pipe.

System Parameters	Dimensions	2423mm2294mm2586mm(LWH)
	Equipment weight	18.65T
	Power	9KW
	Maximum penetration(FE)	60mm
	Detection range	Φ500*800mm
	Load weight	150kg
	Work environment	5-40° ≤80%HR
	Install power	Three-phase five wire system AC380V
	X-ray leakage dose rate	≤2.5uSv/h
X-ray Generator	Tube voltage	450kV
	Power	700W/1500W
	Focal size	0.4mm/1.0mm
Detector	Image area	215mm x 215mm
Detector	Resolution	2.8LP/mm
Detector ( Selection FPD )	Image area	250mm x 300mm
	Pixel matrix	1792mm*2176mm
	Pixel size	139μm
	Frame rate	9fps(1x1)30fps(2x2)
Software Functions	Image processing	Brightness and contrast adjustment; stacking frames; window width and level adjustment; image enhancement, filtering, sharpening, invert, relief and bubble measure;move, zoom in, zoom out; display image scaling; display the current mouse pointer image coordinate and the gray value
	Image measurement	Distance, radius, polygon, angle measurement; arrows and text labels; save the processed image;
	Motion control	Setting the camera rotating screen; exposure time; static,dynamic image display and save, video display and save
Additional Function	Save the detection time of the bulk of the work piece via the CNC programmable control
	No dead angle detection with C type arm five detection mechanism
	Servo stepper motor drive to make the operation stability
	Voltage regulator, isolation, filtering, grounding and other protective functions are complete
	Set aside industrial cloud interface, data and pictures in real time upload, with traceability and large data analysis function (optional)
