Mô tả sản phẩm
Place of Origin: | China |
---|---|
Brand Name: | Unicomp |
Certification: | CE, FCC |
Model Number: | AX9100 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 |
---|---|
Packaging Details: | Polywood case package data:166cm*156cm*195cm total weight:1900KG |
Delivery Time: | 45 days |
Payment Terms: | T/T, L/C |
Detailed Product Description

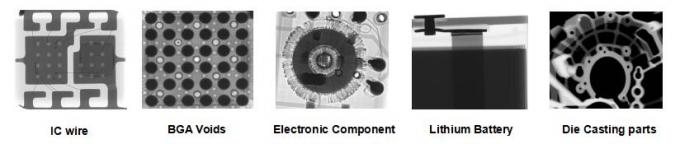

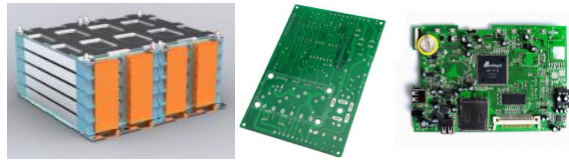

Function: | PCBA,BGA Inspection | Equipment: | Quality Check |
---|---|---|---|
High Light: |
electronics x ray systemx ray equipment |
Item | Description | Specifications |
X-Ray Tube | Max. Voltages, Type | 130kV (Option 110KV), Closed |
Power Consumption | 40W(25W) | |
Focal Spot Size | 7 μm | |
Magnification | 1600X | |
Detector | Detector Type | FPD |
Resolution | 101 LP/cm | |
Effective Area | 116.4mm ×145.7mm | |
System Computer | Operating System | Industrial PC, Win 7, i7 Processor |
Monitor | 22” LCD | |
Software | User Interface | Unicomp Multi-function DXI image processing system |
Working Platform | Max. Loading Area | φ570mm |
Max. Inspection Area | 450mm×450mm | |
Max. Loading Weight | 10kg | |
Movement Control | Joysticks, Mouse and Keypads | |
Motion Range (Up and Down) | 200mm | |
Table Tilting Angle | 55° Tilting and 360° Rotation | |
Navigation | Camera | HD Camera, Laser point |
Axis | Manipulator | 6-axis with X1/ X2 / Y / Z / T(55°) / R(360°) |
Equipment Features | Power Supply | AC 110~220V (±10%) 50Hz, 2.0kW |
Outline Dimensions | 1450(W)×1500(D)×1850(H)mm | |
System Weight | 1900 kg | |
Optional Accessories | None | |
Warranty |
One year warranty , free replacement the parts due to original manufacturer's defect, but expect of man-made damages and force majeure |
Specifications are subject to change without notice, all trademarks are the property of the system maker
