Mô tả sản phẩm
| Place of Origin: | China |
|---|---|
| Brand Name: | Unicomp |
| Certification: | CE |
| Model Number: | UNC225 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1Set |
|---|---|
| Price: | Can Negotiate |
| Packaging Details: | Wooden Case, Waterproof, Anti-collision |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10 sets per month |
Detailed Product Description
| Maximum Penetration（FE: | 150mm/25mm | Tube Voltage: | 225kV |
|---|---|---|---|
| Focal Size: | 1.0mm/3.0mm | Size: | 2230mm*1582mm*2478mm（L*W*H） |
| Detection Range: | Φ500*800mm | Weight: | 5T |
| Power Consumption: | 8KW | ||
| High Light: |
vehicle x ray machinevehicle x ray scanner |
||
225KV Industrial X-Ray NDT shield cabinet systems for Aluminum casting crack porosity checking
UNC225 is a robust, reliable industrial X-ray inspection system for broad applications in foundries, R&D, laboratories, universities, and educational institutions. The system delivers brilliant image quality with digital flat-panel detector and highly dynamic radioscopy.
UNC225 assists you in detection of casting flaws in items such as:
1. Aluminum castings (engine blocks, cylinders, cylinder heads, pistons, knuckles)
2. Turbine blades
3. Wheels and tires
4. Fiber-reinforced materials
5. Ceramics
6. 3D printed materials
| Attribute | Respective Value |
| Maximum penetration(FE) | 150mm/25mm |
| Equipment weight | 5T |
| System Dimension | 2230mm*1582mm*2478mm(L*W*H) |
| X-ray Tube | 225KV |
| Power | 640W/1600W |
| Pixel Pitch | 139μm |
| Focal size | 1.0mm/3.0mm |
| Image Area | 250mm x 300mm |

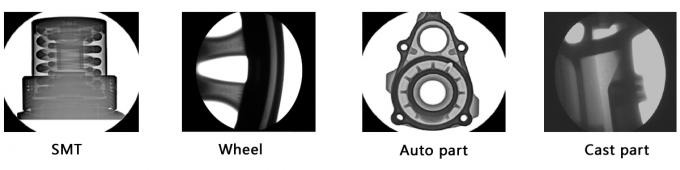

Inspection Images of 225KV Industrial X-Ray :
Our Services
Help customer analyze product project and provide detection solution.
Freely sample detection test.
Provide professional detection solution.
Skilled jig design services.
Provide shipping/delivery information checking service.
One year guarantee, all life maintain promise.
24 hours feedback speed by email of others.
FAQ:
1. How about the package? Is it safe during the delivery?
All X-ray inspection machine is packed by standard strong wooden carton.It is safe when shipping.
2. Do you provide the Warranty? How about the after sales service?
1 year warranty free for spare parts, Whole life technicial support.
We have professional after sales team, if any question, assistant videos are also provided in after-sale service.
3. If we come to your factory, if you will provide the free training?
Yes, warmly welcome you to visit our factory, we will arrange the free training for you.
