0.8kW 5um FDA Electronics X Ray Machine For SMT BGA Soldering

Danh mục:

Unicomp

Vận chuyển giao hàng toàn quốc

Phương thức thanh toán linh hoạt

Gọi ngay 0974692294 để mua và đặt hàng nhanh chóng

Mô tả sản phẩm

Place of Origin:	China
Brand Name:	UNICOMP
Certification:	CE, FDA
Model Number:	AX8200

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	can negotiate
Packaging Details:	Wooden Case, Waterproof, Anti-collision
Delivery Time:	30 days
Payment Terms:	T/T, L/C
Supply Ability:	300 sets per month

Detailed Product Description

Tube Voltage:	100KV	Industry:	Electronics Industry
Size:	1080(L)x1180(W)x1730(H)mm	X-ray Leakage:	< 1uSv/h
Weight:	1150kg	Power Consumption:	0.8kW
High Light:	0.8kW Electronics X Ray Machine 5um Electronics X Ray Machine SMT BGA Soldering X Ray Equipment

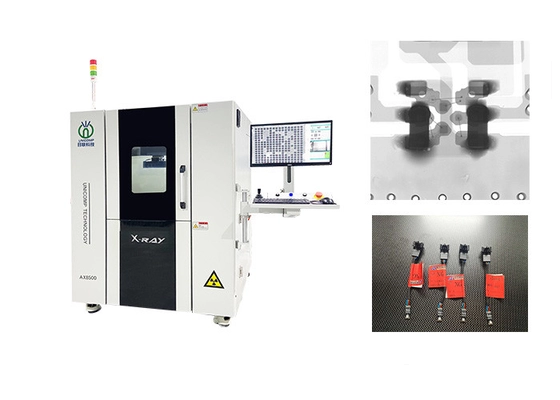

X-Ray Inspection Machine Electronics BGA Standard Multifunction

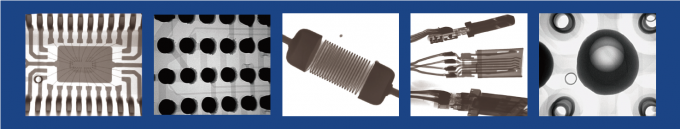

Widely applied for BGA , CSP , Flip Chip, LED , Fuse,Diode, PCB, Semiconductor, Battery Industry, Small Metal Casting, Electronic Connector Module, Cables, Aerospace Components, Photovoltaic Industry, etc.

Applications:
BGA , CSP , LED , Flip Chip , Semiconductor,
Battery Industry , Small Metal Casting,
Electronic Connector Module,
Aerospace Components , Photovoltaic Industry,
Other Special Industries.

System Summary
Footprint	1080(W)×1180(D)×1730(H)mm
Machine Weight	1050 kg
Power Supply	AC 110~220V, 50/60Hz
Plywood Packing Size	146(W)×128(D)×196(H)cm
Packing Weight	1160 kg
Power Consumption	1.0 kW
X-Ray Tube
Tube Type	Sealed
Max. Power	8W
Voltage	0~90kV (Adjustable)
Focus Spot Size	5μm
Imaging System
Detector	Flat Panel Detector (option 4’’ i.i. Detector)
Pixel Size	85μm
Effective Detection Area	130*130mm
Frame Rates	20fps
Pixel Matrix	1536*1536
System Magnification	600X
Software
Auto-measuring	BGA Soldering Voids Auto-measuring and Support Data/Graphic Output
Multiple Measuring Tools	Support Measuring Distance, Angle, Diameter, Polygon, PTH filling rate, etc.
CNC Mode	CNC Programmable Inspection, Easy Operation and User Friendly
Real-time Display	Real-time Displaying the Working Data of Voltage, Current, Angle, Date, etc
Navigation	Laser Locator for Precise Location
Motion Control System
Movement Control	Joystick, Keypad & Mouse
Max. Loading Area/Weight	510*420mm / 10kg
Max. Inspection Area	435*385mm
Oblique Views	Max. ±60°
Manipulator	5-axis with X / Y / Z1 / Z2 / T
Industrial PC
Monitor	22’’ FHD LCD Display
System OS	Windows 10 64bit
Hard disk	1TB
RAM	8GB
CPU model	Intel i7 Processor
Other Features
Energy Saving	X-Ray Auto-off when it's out of work over than 5 minutes
Safety Operation	Electromagnetic Interlock and warning Light
Portable Design	Mounted with Wheels on Machine Bottom
X-Ray Safety	<1μSv/h (Meets All International Standards)
* Specifications are subject to change without notice, All trademarks are the property of the system maker.
